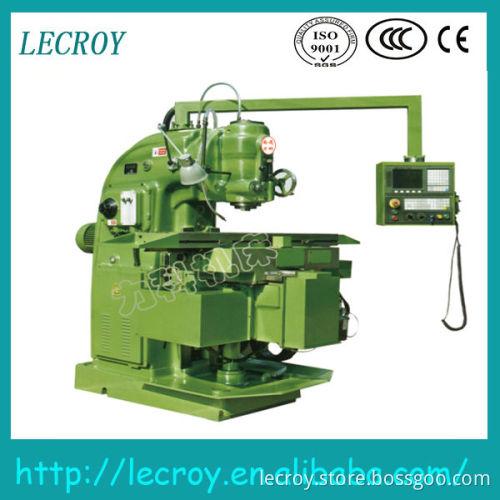

CNC milling machine

Get Latest Price

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

Specifications 1.Easy operate/low noise / variable speed

2.High rigidity and stability casting body

3.Perfect lubricate system

4.ISO9001

PRODUCT NAME: CNC milling machine SPECIFICATIONS:

Item		Units	XK5032
Table	Table size	mm	320x1325/1600
	No./Width of T-slots		3/18
	Distance between T-slots	mm	70
	Max load	kg	500/450
Travel	Longitudinal travel(manual/auto)	mm	700/980
	Cross travel(manual/auto)	mm	250/310
	Vertical travel(manual/auto)	mm	360/375
Accuracy of worktable	Position accuracy of worktable	mm	0.035/0.045
Accuracy of worktable	Repeat position accuracy of worktable	mm	0.025/0.035
Spindle	Spindle taper		7:24(ISO NO.50)
	Spindle bore diameter	mm	29
	Spindle travel	mm	85
	Max. angle of vertical milling head	deg	±45
	Distance between spindle nose and table surface(Min./Max.)	mm	45/415
	Distance from vertical guidway to spindle centerline	mm	350
	Distance from vertical guidway to center of T-slot in center worktable center	mm	215/470
	Spindle speed range	r/min	30-1500
	Spindle speed step	steps	18
Feedrates	Feed rate of axis x	mm/min	6-3500
	Feed rate of axis y	mm/min	6-3500
	Feed rate of axis z	mm/min	6-1200
Motor	Power capacity	KVA	23
	Power of main motor	KW	7.5
	Main motor rotate speed	r/min	1450/1440
	Longitudinal feed motor torque	Nm	10
	Transverse feed motor torque	Nm	10
	Vertical feed motor torque	Nm	15
	Power of coolant pump motor	KW	0.125
	Rotate speed of coolant pump motor	r/min	2790
Others	Overall dimensions(LxWxH)	mm	2272/2550X1970X2094
	Net weight	kg	2800
	Dimentions of control cabinet(LxWxH)	mm	450X420X1200
	Dimentions of maneuvering box(LxWxH)	mm	450X420X280
	Weight of maneuvering box	kg	30

STANDARD ACCESSORIES: wrenches,sleeves,morse taper intermediate sleeve,end mill arbor,spanner for end mill arbor,drawbar, oil gun, lump,cooling device(in the machine),RS232 communication cable OPTIONAL ACCESSORIES(charge separately): machine vise,milling chuck,boring chuck,facing cutter,vertical mill cutter,etc . WHY CHOOSE US? We are the MANUFACTURER of high quality milling machine with competitive price! Such as vertical milling machine X5040/X5032, universal horizontal milling machine X6140/X6132,radial milling machine X6330, etc. The sales performance, satisfied accessories,longtime work team experience, stability & durability of the machines are our best selling points!

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
Assembly shop Strict quality management. Professional QC to ensure accuracy.
Warehouse
Casting
The main parts gear
