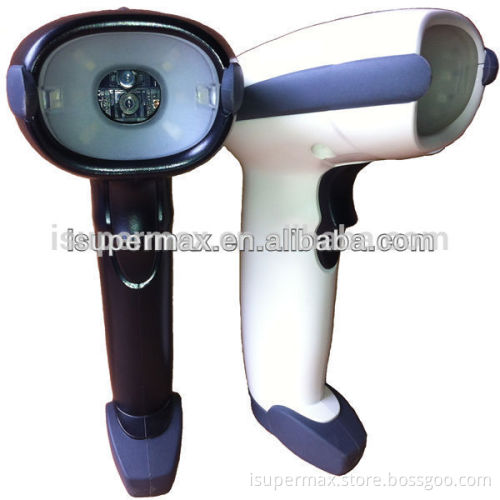

DPM Handheld Barcode Scanner 2D Industrial Barcode Scanner Original Designer High quality

DPM Handheld Barcode Scanner 2D Industrial Barcode Scanner Original Designer High quality  a. OEM branding is acceptable.   b. We can provide any customized service to our client.  c. Our R&D team is able to provide EWR(engineer work request) to our customer where necessary.     Typical use cases Related Hot-selling Products SuperMax delivers a new seires of cost-efficiency for direct part mark readers that most competitive systems simply cannot offer.  Our products have been reading DPM barcode on Apple's iphone production line, both injection and assembly line. We received positive customer feedback and great satisfactory since then.

Physical Characteristics
Dimensions:	16.8 cm H x 10.2cm L x 7.1 cm W
Weight:	170g
Voltage and Current:	5 VDC +/-10% @ 400 mA
Performance Characteristics
Image (Pixels):	752 pixels (H)x 480 pixels (V)
Light Source:	Aiming: 617 nm LED; illumination: 625nm/6500K LED
Field of View:	39.6° (H) x 25.8° (V)
Roll / Pitch / Yaw:	360°, ±65°, ±60°
Print Contrast:	25% minimum reflective difference
Symbology Decode Capability
1-D:	UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
2-D:	PDF417, MicroPDF417, Composite Codes,Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Motion Tolerances:	up to  25 in. (63.5 cm) per second
Interfaces Supported:	USB, Keyboard Wedge, RS232
User Environment
Operating Temperature:	32° to 122° F / 0° to 50° C
Storage Temperature:	-40° to 158° F / -40° to 70° C
Humidity:	5% to 95%, non-condensing
Drop/Shock Specifications:	Withstands multiple 1.8m(6ft.) drops to concrete
Ambient Light Immunity:	Immune to normal indoor lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux.
Decode Ranges
Symbol & Density	HD Focus
Code 39 (3 mil)	10mm-40mm
Code 39 (5 mil)	5mm-60mm
100%UPCA (13 mil)	15mm-120mm
COde 39 (20 mil)	5mm-150mm
PDF417 (6.8mil)	0mm-50mm
DataMatrix (10mil)	0mm-50mm
QR Code (20mil)	0mm-150mm
Resolution 1D Code 39	2.8mil (0.071mm)
Resolution 2D Data Matrix	4.8mil (0.122mm)
Performance may be impacted by bar code quality and environmental conditions
