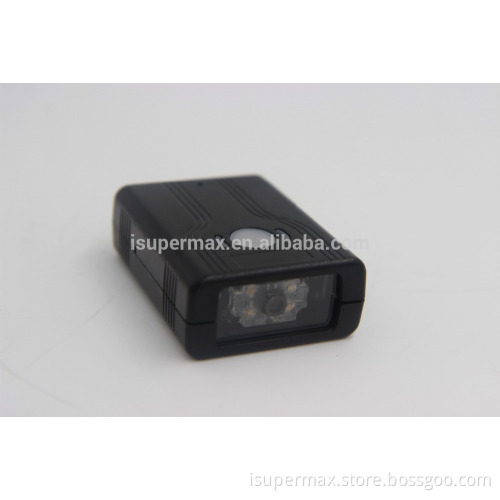

1D and 2D Barcode Scanner High Speed Scanner Barcode Scanners for Cellphones

Physical Characteristics

Dimensions:

Minimum 20.6mmX12mmX15mm

Weight:

40g

Voltage :

3.3 VDC

 Current :

40mA (standby);  <2mA (Sleep mode)

Performance Characteristics

Image (Pixels):

752 pixels (H)x 480 pixels (V)

Light Source:

Aiming: 517 nm LED; illumination: 617nm LED

Field of View:

40° (H) x 26° (V)

Roll / Pitch / Yaw:

360°, ±65°, ±60°

Print Contrast:

25% minimum reflective difference

Symbology Decode Capability

1-D:

UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of

5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

2-D:

PDF417,   MicroPDF417,   Composite   Codes,Data   Matrix,   Maxicode,   QR   Code, MicroQR, Aztec

Motion Tolerances:

up to     33 in. (100 cm) per second

Interfaces Supported:

USB, RS232

User Environment

Operating Temperature:

32° to 122° F / 0° to 50° C

Storage Temperature:

-40° to 158° F / -40° to 70° C

Humidity:

5% to 95%, non-condensing

Drop/Shock Specifications:

Withstands 10Gs 0.06" double amp

Ambient Light Immunity:

Immune to indoor lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux.

Decode Ranges

Symbol & Density

     HD Focus                                                                         SR Focus

Code 39 (5 mil)

   35mm-120mm                                                             60mm-150mm

100%UPCA (13 mil)

   38mm-200mm                                                             45mm-380mm

Code 39 (20 mil)

   38mm-250mm                                                             45mm-400mm

PDF417 (6.8mil)

   35mm-125mm                                                             40mm-200mm

DataMatrix (10mil)

   35mm-140mm                                                             40mm-210mm

QR Code (20mil)

   40mm-180mm                                                             40mm-380mm

Resolution 1D Code 39

   2.8mil (0.071mm)                                                      4.8mil (0.122mm)

Resolution 2D Data Matrix

   4.8mil (0.122mm)                                                      6.6mil (0.168mm)

Performance may be impacted by bar code quality and environmental conditions
