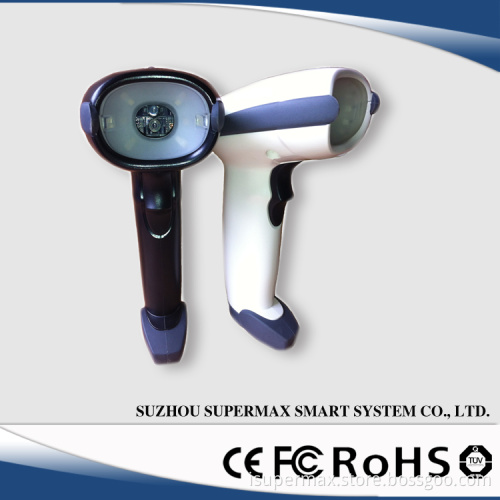

Handheld 2D Barcode Scanner Android / Linux/Mac OS

Handheld 2D Barcode Scanner Android / Linux/Mac OS a. OEM branding is acceptable.   b. We can provide any customized service to our client.  c. Our R&D team is able to provide EWR(engineer work request) to our customer where necessary.

Physical Characteristics
Dimensions:	18 cm H x 10.7cm L x 7 cm W
Weight:	160g
Voltage and Current:	5 VDC +/-10% @ 400 mA
Performance Characteristics
Image (Pixels):	640 pixels (H)x 480 pixels (V)
Light Source:	Aiming: 617 nm LED; illumination: 625 nm LED
Field of View:	40° (H) x 26° (V)
Roll / Pitch / Yaw:	360°, ±65°, ±60°
Print Contrast:	25% minimum reflective difference
Symbology Decode Capability
1-D:	UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
2-D:	PDF417, MicroPDF417, Composite Codes,Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Motion Tolerances:	up to  25 in. (63.5 cm) per second 2D barcode scanner
Interfaces Supported:	USB, RS232
User Environment
Operating Temperature:	32° to 122° F / 0° to 50° C
Storage Temperature:	-40° to 158° F / -40° to 70° C
Humidity:	5% to 95%, non-condensing
Drop/Shock Specifications:	Withstands multiple 1.5m(6ft.) drops to concrete
Ambient Light Immunity:	Immune to normal indoor lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux.
Decode Ranges
Symbol & Density	Range
Code 39 (5 mil)	40mm-110mm
100%UPCA (13 mil)	5mm-280mm
COde 39 (20 mil)	15mm-330mm
PDF417 (6.8mil)	20mm-130mm
DataMatrix (10mil)	10mm-110mm
QR Code (20mil)	5mm-230mm
Resolution 1D Code 39	4.8mil (0.122mm)
Resolution 2D Data Matrix	6.6mil (0.168mm)
Performance may be impacted by bar code quality and environmental conditions
