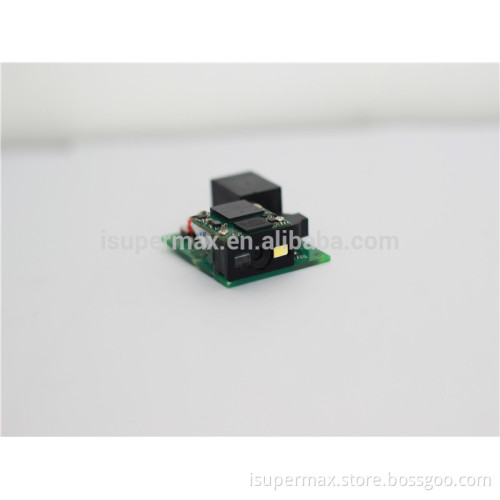

2D Barcode Reader Module Embedded Scan Engine 2D Scan Engine

Physical Characteristics

Dimensions:

22mmX13mmX23.5mm (LxHxD)

Weight:

30g

Voltage and Current:

3.3VDC 150mA (average)

Performance Characteristics

Image (Pixels):

640 pixels (H)x 480 pixels (V)

Light Source:

Aiming: 617 nm LED; illumination: 6500K LED

Field of View:

40° (H) x 26° (V)

Roll / Pitch / Yaw:

360°, ±65°, ±60°

Print Contrast:

25% minimum reflective difference

Symbology Decode Capability

1-D:

UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

2-D:

PDF417, MicroPDF417, Composite Codes,Data Matrix, Maxicode, QR Code, MicroQR, Aztec

Motion Tolerances:

up to  25 in. (63.5 cm) per second

Interfaces Supported:

USB, RS232

User Environment

Operating Temperature:

32° to 122° F / 0° to 50° C

Storage Temperature:

-40° to 158° F / -40° to 70° C

Humidity:

5% to 95%, non-condensing

Drop/Shock Specifications:

Withstands 10Gs 0.06" double amp

Ambient Light Immunity:

Immune to indoor lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux.

Decode Ranges

Symbol & Density

Range

Code 39 (5 mil)

60mm-130mm

100%UPCA (13 mil)

30mm-300mm

Code 39 (20 mil)

35mm-350mm

PDF417 (6.8mil)

40mm-130mm

DataMatrix (10mil)

30mm-130mm

QR Code (20mil)

25mm-250mm

Resolution 1D Code 39

4.0mil (0.102mm)

Resolution 2D Data Matrix

6.6mil (0.168mm)

Performance may be impacted by bar code quality and environmental conditions
