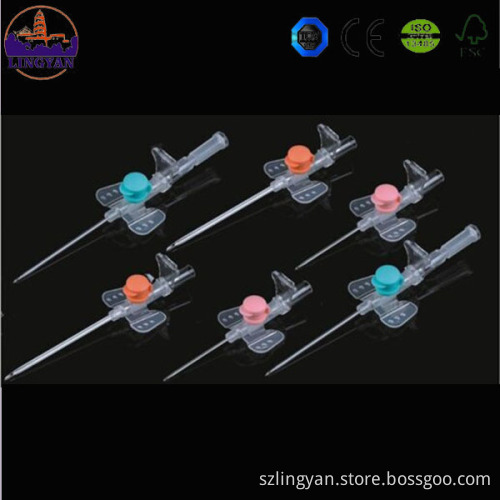

disposable medical use injection port type jelco IV catheters

  Product Description   Specification

Type	IV cannula Pen-Like Model, IV cannula with Wings Model, IV cannula with Injection Port Model, IV cannula Y-Type Model
Quality	CE0197/ISO13485
OEM/ODM	Clients' design is welcome
Application	used for clinical peripheral vascular system insertion, repeated infusion / blood transfusion, parenteral nutrition, emergency rescue, etc
Shelf life	5 years

Main Material  1. FEP Flex Catheter , latex free.     2. Japanese Needle with 3-facet Needle point to reduce penetration force    3.Kink resistant and specially tapered Catheter for easy vein puncture with minimum trauma    4.Transparent flash back chamber for easy visualization of blood to confirm venipuncture   Size I.V.Cannula: Pen-like, With Wings,  With Injection Port Type

Gauge	Product Specification	Flow	Color Code
14G	2.00"(2.1mmx50mm)	300mL/min	Oragne
16G	2.00"(1.7mmx50mm)	200mL/min	Medium Gray
18G	1.77"(1.3mmx45mm)	90mL/min	Dark Green
20G	1.30"(1.1mmx33mm)	61mL/min	Pink
22G	1.00"(0.9mmx25mm)	36mL/min	Dark Blue
24G	0.75"(0.7mmx19mm)	18mL/min	Yellow
26G	0.63"(0.6mmx16mm)	12mL/min	Purple

  I.V.Cannula: Y Type

Gauge	Product Specification	Flow	Color Code
18G	1.16"(1.3mmx30mm)	80mL/min	Dark Green
20G	1.16"(1.1mmx30mm)	50mL/min	Pink
22G	1.00"(0.9mmx25mm)	33mL/min	Dark Blue
24G	0.75"(0.7mmx19mm)	24mL/min	Yellow
26G	0.63"(0.6mmx16mm)	12mL/min	Purple
