Knob Door lock

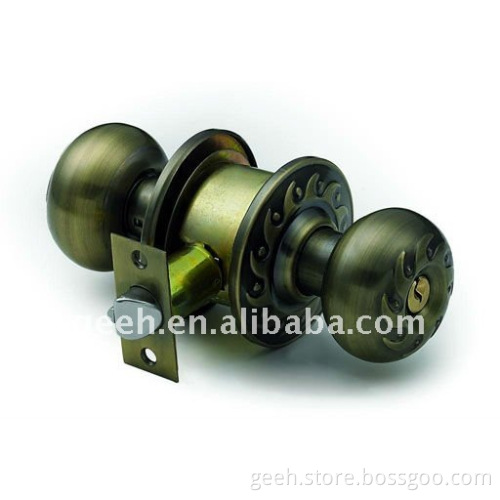

Cylindrical Knob Door Lock

 1, Guaranteed over 150,000 life cycles.

 2, Can be keyed alike to dead bolt series to maximize security.

 3, Can be keyed alike in a group to enhance convenience.

 4,Can be master keyed in a simply combination for family and facility use.

 5, Solid steel chassis and latch case, zinc plated for corrosion resistance.

 6, Exposed trim is made of either wrought stainless steel or brass.

 7, 5-pin tumbler cylinder, brass plug with 3 nickel plated brass keys.

  Features:

  Latch Bolt
  1/2"(12mm)latch extension.
  Dead locking for keyed functions.
  2-3/4"(70mm) curved lip strike as standard. 2-1/4"(57mm) strike available upon request.


  Backset
  Standard 2-3/8"(60mm).
  2-3/4"(70mm) available upon request.
  Note:Backset is the distance between door hole center and door edge.
  Fully reversible for either right or left hand door.
