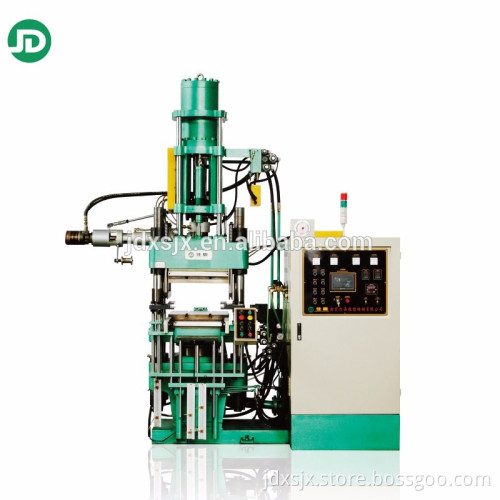

JDSL400 injection rubber compression molding machines

JDSL400 injection rubber compression molding machines

Get Latest Price

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

Product Description The size of this type:JDSL60,JDSL100,JDSL200,JDSL300,JDSL400,JDSL580 Specification

specification	unit	JDSL400
clamping force	ton	400
surface size	mm	720*750
storage of rubber	c.c	3000/3500
screw diametre	mm	45
open-molding processer	mm	600
the largetest hydraulic pressure injection	kg/cm²	150-160
raw material size (thick*width)	mm	10*60
piston diameter	mm	490
main motor	kw	18.5
galvanothermy power	kw	16.4
size of machinery	mm	291023603830
weight of machinery	kg	8800

1.Control system P.L.C control system, color LCD screen, is convenient to set parameters,the whole movement is controled, self-diagnosis and fault alarm.it can store 100 sets operation process parameters,therefore shorten preparation time. 2.die-filled system clamping force has a rapid die-filled system,and clamping directly complete,fast and smooth conversion from the main fuel tank. 3.Temperature Control Using HTF heating , and looping cooling water. Reserve materials and precise control of temperature injection. 4.injection system With injection pressure and injection speed, three pressing, it can meets the different compound of the requirements to making more precise precision injection, and precise location of the electronic device, an the reasonable injection plunger diameter. 5. Security protection With a photoelectric device security protection, it ensures the fafety of the operator. It can prevent mold damage with a low voltage clamping protection. 6.Ejection device Different products,different choice of the top output and speeds. It makes more convenient for product remaval.

Packaging & Shipping

Company Information Nanjing Jiading rubber and plastic machinery Co.,LTD. is a manufacturer of advanced hydraulic rubber molding equipments.Besides regular series rubber machinery products, recent years we introduced the cold runner technology, and applied pressing molding machine,oil seal special molding machine,medicine bottle stopper special molding machine,rubber auto-injected molding machine,automatic air spring vulcanizing perss, vacuum automatic oil seal skin bowl trimming machine,vacuum automatic rubber gasket cutting machine,etc. Best-selling products at home and abroad,is the ideal choice of many rubber products manufacturers.

Our Services 1. We will reply you within 24 hours after receive you inquiry 2..Good after-sale service 3.Fast delivery 4.Competitive price 5.Inform the new progress of the production timely 6.Rich experience in exporting
