Automatic bottled pure water filling machine (3 in 1 )

Automatic bottled pure water filling machine (3 in 1 )   Pure water 3 in 1 filling machine Pure water 3 in 1 machine Monoblock pure water filling machine          Machine introduction: Rinser: Adopting advanced international technology, we design the QS series rotary bottle rinsing machine by ourselves. With the independent innovative design, this series machine has been the advanced bottle rinsing machine in China.    Main characteristics: i .Professional cleaning machine for empty plastic bottle or glass bottles .   ii.Fixed structure, impeccable controlling system and easily for operating and maintain.   iii. Reliable cleaning theory and spraying method to rinse the inside and outside of the bottles.   iv. When change the bottles, only need to change the starwheel and guide plate, no other machine accessory need to change; this machine is suitable for rinsing PET bottles and glass bottle, can be used for large and middle-size enterprise, not only for the whole filling line, but also for the separate working;     Filler i.This machine has speed regulating motor so that the production capacity can be adjusted according to customer requirement easily.   ii. Our filling valve is adopting German advanced technology, even with running speed 32000 bottles per hour, our machine can fill stably and exactly;   iii. All our filling accessory have been well polished, and have nice appearance , fast filling speed, without any leakage;   iv. Our machine is equipped with anti-reverse rotation unidirectional clutch device. When it overload, the clutch will slip to stop the machine, so that the machine can work normally.   v. Our machine can fill the PET bottle which can not be filled by low vacuum filling machine.    Capper i.Our capping machine is suitable for plastic screw cap , aluminum screw cap, theft deterrent cap, etc which is mainly used in the PET bottled no-gas drinking ;   ii. Our capping machine have the stable transmission system, great sealing performance, easy operation, convenient maintance character.

Model		RFCW8-8-3	RFCW16-12-6	RFCW18-18-6	RFCW24-24-8
Number of rinsing head		8	16	18	24
Number of filling head		8	12	18	24
Number of capping head		3	6	6	8
Rated production capacity		3000BPH	4000BPH	6000BPH	10000BPH
Installed capacity		3	3.5	4	4.8
Overall size		1900×1420×2000	2200×1600×2300	2450×1900×2300	2750×2180×2400



Model		RFCW32-32-10	RFCW40-40-12	RFCW50-50-15
Number of rinsing head		32	40	50
Number of filling head		32	40	50
Number of capping head		10	12	15
Rated production capacity		12000BPH	16000BPH	24000BPH
Installed capacity		7.6	8.3	9.6
Overall size		4000×2300×2300	4550×2650×2300	5450×3210×2300

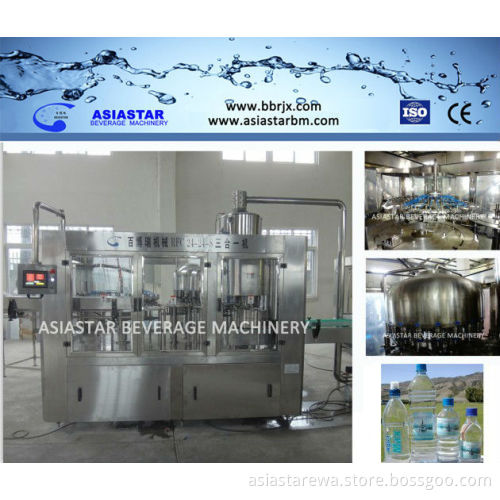

    A.The whole machine outside      B.The whole machine inside     C.Rinsing machine     D.Filling machine & Capping machine             Company Information               Contact Information Our enthusiastic and friendly customer service representatives are ready to assist with any questions or problems. Contact us today.
