Automatic Water Filling Machine

      Automatic Water Filling Machine   water sterilizing washing filling capping equipment   4 in 1 water filling machine   4 in 1 water filler                 Feature:   1.water filling machine   2.drink water filling machine   3.pure water making machine       Description:   Trustworthy Water Filling Machine Manufacturer/Plant/Factory is used to fill stilled water into pet bottle and with screw caps capping function.       This machine integrated four function:   1. Sterilizing the bottles with disinfectant water   2. Rinse the empty pet bottles   3. filling the rinsed bottles   4. capping the filled bottles

Model		RFCW16-16-12-6	RFCW18-18-18-6	RFCW24-24-24-8
Number of sterilizing head		16	18	24
Number of rinsing head		12	18	24
Number of filling head		12	18	24
Number of capping head		6	6	8
Rated production capacity		4000BPH	6000BPH	10000BPH
Installed capacity		3.8	4.3	6.5
Overall size		3050×2000×2300	3170×2070×2300	4070×2350×2300



Model		RFCW32-32-32-10	RFCW40-40-40-12	RFCW50-50-50-15
Number of sterilizing head		32	40	50
Number of rinsing head		32	40	50
Number of filling head		32	40	50
Number of capping head		10	12	15
Rated production capacity		12000BPH	16000BPH	24000BPH
Installed capacity		8.7	9.5	12
Overall size		5100×2600×2300	6250×3050×2300	7500×3900×2300

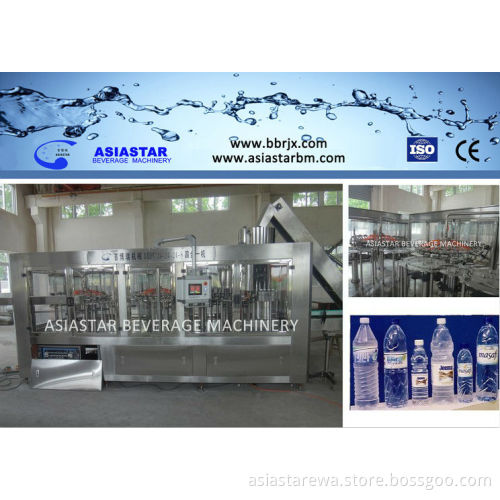

                A.Whole machine outlooking              B.Rinsing part             C.Filling part             D.Capping part                                                                                                                       About our company                                                                                        Contact information
