Small capacity Glass bottled drinking water filling machine

  Small capacity Glass bottled drinking water filling machine Glass bottled water filling machine Glass bottle filling machine Bottled water filling machine     Feature: 1. Producing capacity: 1000-32000bph 2. Bottle volume: 500ml-5L 3. PLC controlled 4. Material: Stainless steel SUS304 or SUS316   Characteristics: a. Using the air convey system to send the bottle directly into the integrated machine, instead of screw and conveyor chains, when change bottles, it will be more easily   b. We adopt bottleneck clamping structure in the bottle transmission system , when bottle shape changed , the machine height  no need to change, only need to change the related curved plate, wheel and nylon parts will be ok.   c. All the machine accessory will only touch the bottles parts below the capping area, to avoid the second time pollution.   d. High-speed large flow filling valve, filling fast, filling accurately and no liquid lose.   e. Spiraling decline when output bottle, when change the bottles, only need to adjust the height of conveyor chains.   f. PLC and transducer controlled the machine, the main electrical components from famous company such as Japan\'s Mitsubishi,    France Schneider, OMRON.

Model		RFCW8-8-3	RFCW16-12-6	RFCW18-18-6	RFCW24-24-8
Number of rinsing head		8	16	18	24
Number of filling head		8	12	18	24
Number of capping head		3	6	6	8
Rated production capacity		3000BPH	4000BPH	6000BPH	10000BPH
Installed capacity		3	3.5	4	4.8
Overall size		1900×1420×2000	2200×1600×2300	2450×1900×2300	2750×2180×2400



Model		RFCW32-32-10	RFCW40-40-12	RFCW50-50-15
Number of rinsing head		32	40	50
Number of filling head		32	40	50
Number of capping head		10	12	15
Rated production capacity		12000BPH	16000BPH	24000BPH
Installed capacity		7.6	8.3	9.6
Overall size		4000×2300×2300	4550×2650×2300	5450×3210×2300

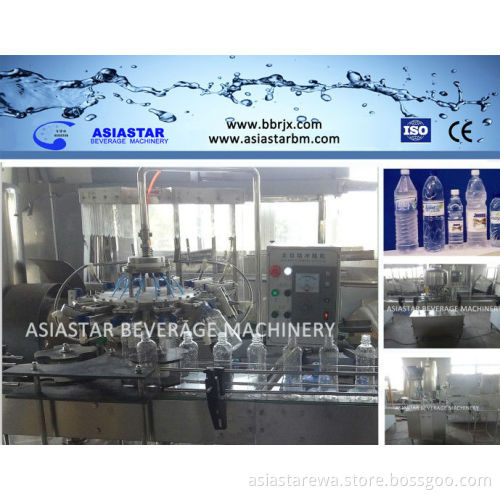

    A.Whole machine outlooking     B.Rinsing part     C.Filling part     D.Capping part                                                                                    About our company                                                                Contact information
