Customized automatic glass bottled lemon juice filling machine

Specifications Lemon juice filling machine

1.Production capacity: 1000-25000BPH

2.Material: SUS304 or SUS316

3.Certification: CE, ISO

4.PLC

  Customized automatic glass bottled lemon juice filling machine Lemon juice filling machine Glass bottled juice filling machine Automatic Juice filler        Feature: 1. filling machine
2. Reliable quality, excellent machine performance, competitive price, & good service
3. Model: Monobloc rinsing filling capping machine for juice drinking
4.operate automatically
5.Certification: CE,BV, ISO   Machine introduction: 1. Our juice or tea drinking machine is used for hot filling , and sealing juice, juice drink, tea drinking, etc. And it is integrated with rinsing bottles , filling juice , capping the bottled juice;   2.Our machine can with the producing capacity from 1000 BPH -25000 BPH (500ml ), even with the running speed 25000 bottles per hour, our machine will run very stable;   3. Bottle volume & material : 100ml -2.5L PET bottle with screw cap, glass bottle with aluminum cap, crown cap, twist-off cap, theft deterrent cap;  and the bottles can be round bottle, square bottle, other bottles customer required

Model		RFCH8-8-3	RFCH16-16-6	RFCH18-18-6	RFCH24-24-8
Number of rinsing head		8	16	18	24
Number of filling head		8	12	18	24
Number of capping head		3	6	6	8
Rated production capacity		3000BPH	4000BPH	6000BPH	10000BPH
Installed capacity		3	3.5	4	4.8
Overall size		1900×1420×2000	2200×1600×2300	2450×1900×2300	2750×2180×2300



Model		RFCH32-32-10	RFCH40-40-12	RFCH50-50-15
Number of rinsing head		32	40	50
Number of filling head		32	40	50
Number of capping head		10	12	15
Rated production capacity		12000BPH	15000BPH	20000BPH
Installed capacity		7.6	8.3	9.6
Overall size		4000×2300×2300	4550×2650×2300	5450×3210×2300

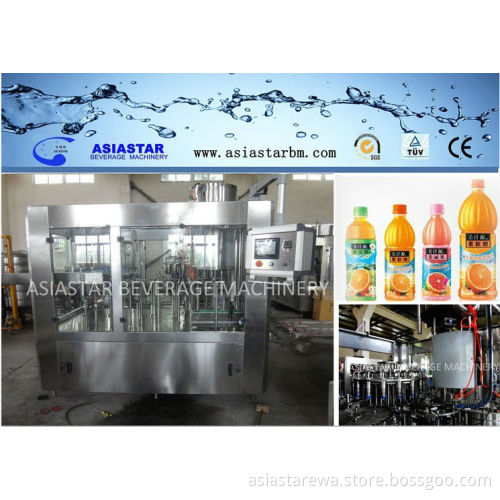

                                                                                        Image show    A. .Washing part       B. Filling part       C. Capping part     D. Machine inside     E.  Machine outlooking                                                                                    About our company                                                        Contact information
