passenger lift-model 2



Rated Load	Persons	Drag Method	Rated Speed	Net Dimension of Car		Dimension of Door Opening		Dimension of Hoistway		Over Head	Pit Depth
				Width	Depth	Width	Height	Width	Depth
KG	Num		m/s	Unit:mm
450	6	V V V F	1.0	1400	850	800	2100	1900	1500	4300	1400
630	8		1.0/1.5/1.75	1400	1100	800	2100	1900	1700	4300/4500/4600	1400/1600/1600
800	10		1.0/1.5/1.75/2.0	1400	1350	800	2100	1900	2000	4300/4500 4600/4900	1400/1600 1600/2100
1000	13		1.0/1.6/1.75/2.0	1600	1500	900	2100	2200	2150	4300/4500 4600/4900	1400/1600 1600/2100
1250	16		1.0/1.6/1.75/2.0	1950	1400	1100	2100	2600	2100	4500/4600 4600/4900	1500/1600 1700/2200
1600	21		1.0/1.6/1.75/2.0	1950	1750	1100	2100	2600	2600	4500/4600 4600/4900	1500/1700 1700/2200

    Features: * VVVF door operator, coupled with no connecting-rod synchronous belt type structure make the elevator door open and close smoothly and quietly. * 32-bit microcomputer control system, advanced serial communication technology between elevator control cabinets, floors and car to make the control system more efficient and accurate, printed circuit board adopt low power consumption, high integrated SMD components, which improve the life of its electronic devices. * Permanent magnet synchronous technlogy and planet gear traction system makes elevator structure much more compact and reasonable. * Permanent magnet synchronous conversion door operator make full use of hoistway space and minimize its size. * Mini machin-room or no machine-room layout greatly reduce headroom height and pit depth, which can greatly enrich its application. * Low-power consumpttion, the fully load power consumption is equivalent to a 2HP air conditioner, and daily power consumption is equivalent to a household refrigerator. * Direct brake traction wheel makes elevator run with more security and reliability. * Backup battery(UPS) will work automatically when power off unexpectly, it will run elevator to the nearst floor, and open door to release passenger. * Variety of fashionable car decoration and humanized button, customers can choose it as per their own hobbies.       Car & door materail options:      Std.  Stainless steel // Stainless steel hairline

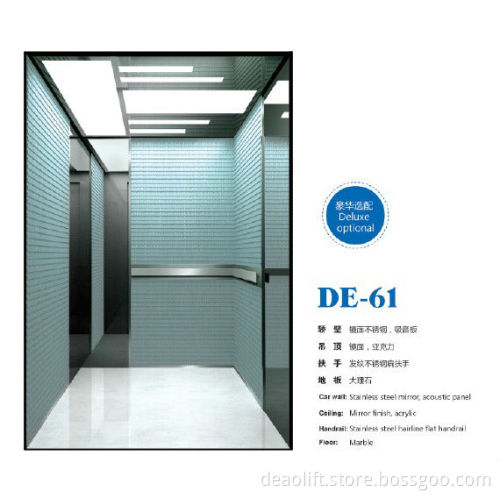

     Opt.  Steel membrane
              Stainless steel etching
              Stainless steel mirror etching               Stainless steel mirror
              Colored painting
              With incorportating glass windows               Customized etc.
