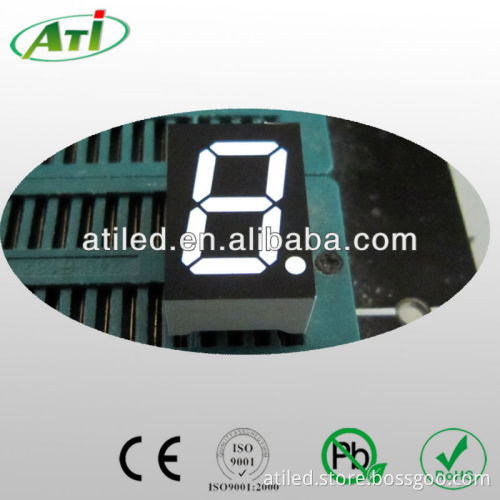

0.32" 7 segment LED digit display indoor single digit white color

 ATI 7 SEGMENT LED DIGIT DISPLAY INDOOR    Features—Our Products Stand out of Others   1.Over 12 years producing experience as the vendor of Samsung,Haier,LG etc. 2.Big scale of producing makes sure that your purchase cost is lower. 3.Advanced production line guarantees stable quality and long life span. 4.High luminous intensity output, low voltage and current operating, ultra-low power consumption. 5.Solid-state LED Epistar chip based, easy mounting on printed circuit board and sockets.     Product Exhibition—Show the Details for You         ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:

PARAMETER	SYMBOL	TEST CONDITION	Color	MIN	TYP	MAX	UNIT
Forward Voltage ,Per Segment	VF	IF=20mA	white	6	6.4	7	V
Reverse Current , Per Segment	IR	VR=5V	white			50	μA
Peak Emission Wavelength	λp	IF=20mA	white	460	462.5	465	nm
Luminous Intensity Per Segment	IV	IF=20mA	white	70	80	100	mcd

      Perfect Product Package—We Care about Your Goods and You     Our New Production Line—Make Your Choice to be The Best     Our Certifications—No Worry for Our Products     7 segment LED Display Series—More Choices for Your Purchase      More Information, You Could Easily Contact Us
