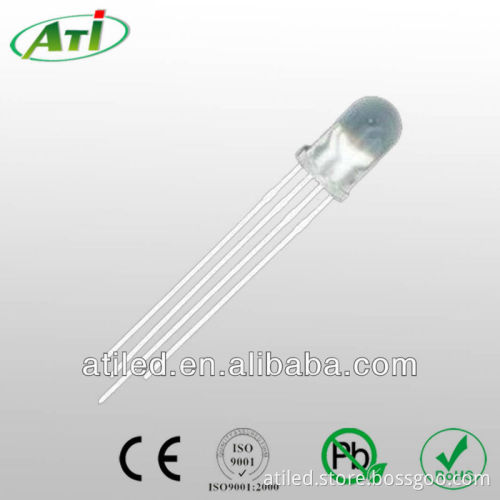

5mm RGB LED, Common Cathode 5mm RGB LED

5MM RGB LED Features Our Products Stand out of Others   Over 12 years producing experience as the vendor of Samsung,Haier,LG etc. Big scale of producing makes sure that your purchase cost is lower. Advanced production line guarantees stable quality and long life span.    ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:

PARAMETER	SYMBOL	TEST CONDITION	Color	MIN	TYP	MAX	UNIT
Forward Voltage	VF	IF=20mA	Red	1.8	1.9	2.3	V
			BL	3.2	3.4	3.6
			PG	3.0	3.2	3.4
Luminous Intensity	IV	IF=20mA	Red		500		MCD
			BL		1500
			PG		600
Peak Emission Wavelength	λP	IF=20mA	Red	620	----	630	nm
			BL	460	---	465
			PG	520	----	525
Reverse Current	IR	VR=9V	R&BL&PG			5	μA

  Perfect Product Package—We Care about Your Goods and You       High Level Production Line     We are approved     RGB LEDs—More Choices for you. We are producing 0603RGB LED 5050 RGB LED; 5mm RGB LED; 3W RGB LED.       More Contact Information ...
