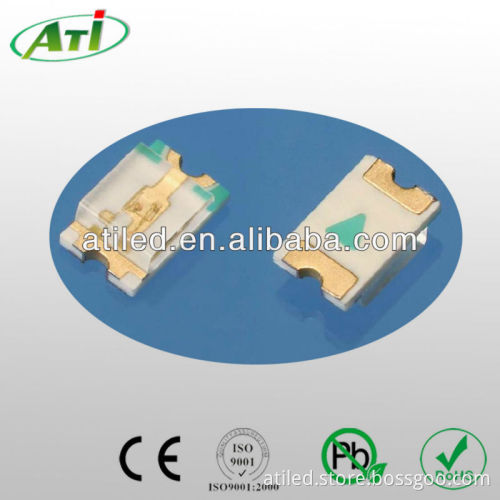

0805 red color led chip, 0805 led chips, 0805 SMD led

0805 smd led chip features—Our Products Stand out of Others   Over 12 years producing experience as the vendor of Samsung,Haier,LG etc. Big scale of producing makes sure that your purchase cost is lower. Advanced production line guarantees stable quality and long life span.     ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:

Parameter	Symbol	Condition	Min	Typ.	Max	Unit
Luminous Intensity	Iv	IF=20mA	70	130		mcd
Dominant Wavelength	λD	IF=20mA	618	625	632	nm
Peak Emission Wavelength	λp	IF=20mA		625		nm
Viewing Angle	2θ1/2	IF=20mA		120		Deg
Forward Voltage	VF	IF=20mA	1.7	2.1	2.4	V
Reverse Current	IR	VR=5V			10	μA

0805 led chip dimension draw   Perfect Product Package—We Care about Your Goods and You      Our New Production Line—Make Your Choice to be The Best     Our Certifications—No Worry for Our Products     SMD LEDs —More Choices for Your Purchase        More Information, You Could Easily Contact Us
