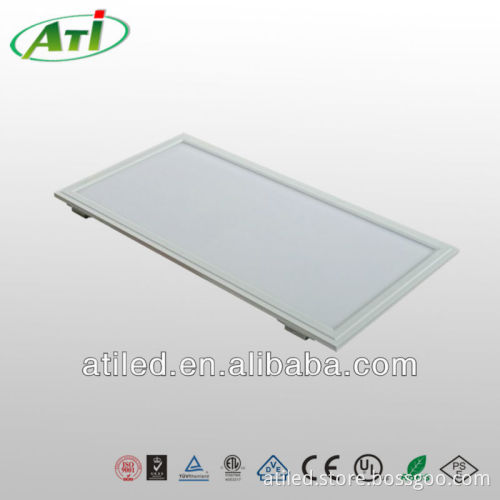

led light panel, CE, TUV and UL approved led light panel

Specifications 1. No flicker, nice looking

2. Ultra slim 10mm

3. Super bright>75lm/W

4. CRI>72

5. Japanese Mitsubishi LGP, Taiwan LED.

  Product Description    led light panel product Features With External power supply, Driver input voltageAC85-265V, 50/60Hz; Lighting input voltageDC30-42V, Constant current. PF>0.95, Power Efficiency: >0.85 Material: AL+PMMA+PC Diffuser Protection grade IP42; Insulation class II. Ambient temperature:-20°C~45°C, Surface temperature: 42°C~45°C; Relative humidity 10%-80%RH. Energy-saving, Super bright, environmental-friendly, saving 65% energy than the traditional panel lights. Uniform light output, bright and comfortable, alleviating eye fatigue, wide beam angle   Under the condition of voltage instability, the LED panel light could work properly.     Product  Details -------- Parameters

Electrical Characteristics		Optical Properties
Power Supply	With External Constant Current Power Supply	LED Type	SMD3014
Input Voltage	AC85-265V / 50-60Hz	LED Q’ty	168 pcs
Working Voltage	DC30-42V 720mA	Lumen	2250-2550 lm
Power	30W	CRI	70 Ra or 80 Ra
Power Factor	0.90-0.95	Beam Angle	120°
Life Time	50000H	CCT	2800-3200K/4000-4750K/ 5500-6500K
Standard Dimensions
Product Dimension	N.W.	Packing Dimension	G.W.
595*295*10 mm	1.9 kg	66*33*5.5 cm	2.6 kg

    Product  Details --------Product Structure       Product  Details ------- Connection Way            Packaging & Shipping      Product  Details ------- Packing Details

Model	Master Carton Size	Packing Dimension	Q’ty	N.W.	G.W.
300*300mm	370*340*55mm	390*625*360mm	10pcs	1.5kg*10	16.5kg
600*300mm	660*330*55mm	680*625*350mm	10pcs	2.6kg*10	28.0kg
600*600mm	660*630*55mm	680*325*650mm	5pcs	4.6kg*5	24.6kg
620*620mm	680*650*55mm	700*345*670mm	5pcs	4.9kg*5	26.5kg
1200*300mm	1260*330*55mm	1280*325*350mm	5pcs	4.6kg*5	24.8kg
1200*600mm	1260*630*55mm	1280*325*650mm	3pcs	8.9kg*3	28.4kg

    Company Information      Production Line----- Reliable quality assurance       Certifications ------ You choose five star company.       More informations------ You could easily contact us
