Thanks for choosing HITECH ELEVATOR as your business partner

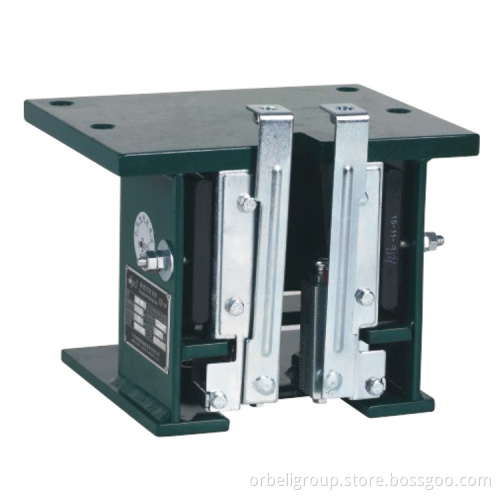

ELEVATOR SAFETY GEAR
This progressive safety gear will be installed on the bottom of the lower beam. After the descending over-speed of the elevator enables the speed regulator, the speed governing wire rope will enable the linkage safety gear of the lifting mechanism, enable if and stop the car. Being convenient for installation and adjustment, it generally applies to passenger elevators, and the positioning hole can be customized in compliance with the installation requirement of every guide shoe.
Technical Specifications:
Lift rated speed:≤ 2.5m/s
Total mass: 1045~4467kg
Width of guide rails: 10mm,15.88mm,16mm
| Lift rated speed | A×B | C×D | P+Q(kg) | width of guide rail | |
| G01 | ≤2.5m/s | 260×206 | 220×90 | 1045~4467 | 10,15.88,16 |
| G02 | 206×206 | 110×90 |
Porducts can be packed in wooden cases and carton box
