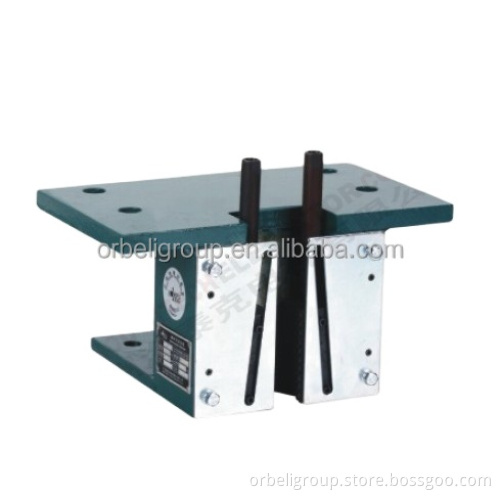

Elevator Instantaneous Safety Gear OX288 Safety System

$80.00 - $200.00/set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1000 Set/Sets per Month
Payment Type:	L/C,Western Union,D/P,T/T
Port:	SHANGHAI

Product Description

Thanks for choosing HITECH ELEVATOR as your business partner

ELEVATOR SAFETY GEAR

This instantaneous safety gear’s use is the same as that of OX-188. But most of them apply to low-speed freight elevators because their brake load is heavy and the positioning hole can be customized in accordance with the mounting requirements of every guide shoe.

Technical Specifications:

Lift rated speed: v ≤ 0.63m/s

When using(10mm) guide rail, the total allowable quality:≤3602kg

When using (16mm) guide rail, the total allowable quality: ≤7161kg

Elevator Instantaneous Safety Gear OX288 Safety System

G	A	B	C	D
G01	250	210	Φ13	75
G02	300	260	M12	70

Lift rated speed	V≤0.63m/s
When using(10mm) guide rail, the total allowable quality	≤3602kg
When using (16mm) guide rail, the total allowable quality	≤7161kg
