Product Description

Thanks for choosing HITECH ELEVATOR as your business partner

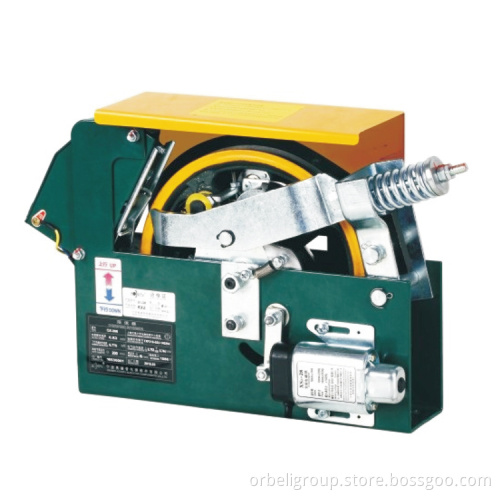

ELEVATOR OVER SPEED LIMIETER/GOVERNOR

If the elevator descends with excessive speed, the descending brake will be used to support the general descending safety gear, enable the safety gear, and stop the car, playing the role of descending over-speed protection.

If the elevator ascends with excessive speed, the over-speed switch can be turned off to cut off the power and stop the car, playing the role of ascending over-speed protection.

The electromagnet switch can be used to detect the actuation of the speed governor, and detect the elevator.

The remote control is available.

Rated speed:≤ 1.75m/s

Wire rope diameter(mm): Φ6,Φ6.3,Φ8

Sheave diameter(mm): Φ240

Tension force:≥1000N

Super switch voltage grade:AC220V/DC24V

Switch voltage grade:AC220V/DC24V

Action magnet voltage grade:AC220V/DC24V

Elevator Speed Governor With Tension Device/Installation in Machine Room

Product Name	Description
Bi-directional Overspeed Governor	Model	HI-OX240F
	Rated Speed	<=2.5m/s
	Wire Rope Diameter(mm)	Φ6, Φ8
	Sheave Diameter(mm)	Φ240mm
	Tension Force	>=1000N
	Overspeed Switch Voltage	AC220V
Bi-directional Overspeed Governor	Model	HI-OX240B
	Rated Speed	<=2.5m/s
	Wire Rope Diameter(mm)	Φ6, Φ8
	Sheave Diameter(mm)	Φ240mm
	Tension Force	>=1000N
	Overspeed Switch Voltage	AC220V
Bi-directional Overspeed Governor for MRL	Model	HI-OX240E
	Rated Speed	<=0.63m/s
	Wire Rope Diameter(mm)	Φ6, Φ8
	Sheave Diameter(mm)	Φ240mm
	Tension Force	>=1000N
	Overspeed Switch Voltage	AC220V/DC24V
	Switch Electromagnetic Voltage	AC220V/DC24V
	Action Electromagnetic Voltage	AC220V/DC24V
Uni-directional Overspeed Governor for MRL	Model	HI-OX240A
	Rated Speed	<=1.75m/s
	Wire Rope Diameter(mm)	Φ6, Φ8
	Sheave Diameter(mm)	Φ240mm
	Tension Force	>=1000N
	Overspeed Switch Voltage	AC220V/DC24V
	Switch Electromagnetic Voltage	AC220V/DC24V
	Action Electromagnetic Voltage	AC220V/DC24V
Bi-directional Overspeed Governor for MRL	Model	HI-OX187
	Rated Speed	<=1.75m/s
	Wire Rope Diameter(mm)	Φ6, Φ8
	Sheave Diameter(mm)	Φ240mm
	Tension Force	>=500N
	Overspeed Switch Voltage	AC220V/DC24V
	Switch Electromagnetic Voltage	AC220V/DC24V
	Action Electromagnetic Voltage	AC220V/DC24V
Bi-directional Overspeed Governor for MRL Home Elevator	Model	HI-OX186
	Rated Speed	<=0.63m/s
	Wire Rope Diameter(mm)	Φ6
	Sheave Diameter(mm)	Φ200mm
	Tension Force	>=500N
	Overspeed Switch Voltage	AC220V/DC24V
	Switch Electromagnetic Voltage	AC220V/DC24V
	Action Electromagnetic Voltage	AC220V/DC24V
Uni-directional Overspeed Governor	Model	HI-OX240
	Rated Speed	<=2.5m/s
	Wire Rope Diameter(mm)	Φ6, Φ8
	Sheave Diameter(mm)	Φ240mm
	Tension Force	>=1000N
	Overspeed Switch Voltage	AC220V/DC24V
