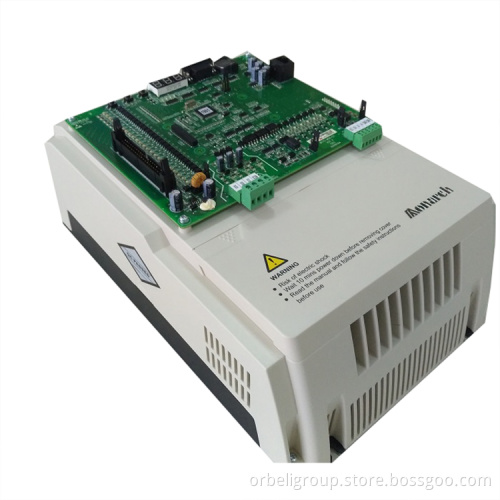

NICE-L-H-4005 Integrated Controller

$450.00 - $500.00/piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1000 Piece/Pieces per Month
Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Port:	Shanghai

Product Description

Thanks for choosing HITECH ELEVATOR as your business partner

We can provide all types of Monarch elevator controllers.

NICE 1000 Elevator Integrated Controller

The NICE1000 is an independently developed integrated controller specifically for elevators designed by MCTC. Focusing on electronic systems in elevators, MCTC uses an entirely parallel signal transmission method, combining the advantages of high stability, ease of use and no need for adjustment that allow this perfect integration to be used in both private and cargo elevators

Input Voltage: Three Phase 220V, Three Phase 380V

Power Capacity (kVA): 4.0~40

Input Current (A): 13.2~62

Output Current (A): 9.6~60

Appropriate Motor (kW): 2.2~30

Monarch Elevator/Lift controller/NICE1000

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-G/V-4003

Monarch lift/elevatorcontroller/elevator controller/NICE1000-NICE-L-G/V-4005

Monarch lift/elevatorcontroller/elevator controller/NICE1000-NICE-L-G/V-4007

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-G/V-4011

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-G/V-4015

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-G/V-4018

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-G/V-4022

Main parameters of NICE 1000 elevator integrated controller

Model	Input voltage	Capacity	Input current	Output current	Adoptable motor
Model	Input voltage	(KVA)	(A)	(A)	(KW)
NICE-L-G/V-2002	3-phase 220V	4	13.2	9.6	2.2
NICE-L-G/V-2003	range:-15%~20%	5.9	17	15.6	3.7
NICE-L-G/V-4002	3-phase 380V	4	6.5	5.1	2.2
NICE-L-G/V-4003	range:-15%~20%	5.9	10.5	9	3.7
NICE-L-G/V-4005		8.9	14.8	13	5.5
NICE-L-G/V-4007		11	20.5	18	7.5
NICE-L-G/V-4011		17	29	27	11
NICE-L-G/V-4015		21	36	33	15
NICE-L-G/V-4018		24	41	39	18.5
NICE-L-G/V-4022		30	49.5	48	22
NICE-L-G/V-4030		40	62	60	30

The products with the input voltage 220V correspond to 3- phase inputting. If the input voltage is single phase, it shall match with a larger frequency. For example,NICE-L-G-2003 can be used in the situation that single phase inputting 220V to drive the motor with 2.2 KW.

Monarch Elevator/Lift controller/NICE3000

The NICE 3000 series of integrated controllers for elevators was independently developed and manufactured by MCTC, organically combining elevator control and motor drive to Create a new generation of intelligent, vector integrated controllers for elevators. The NICE3000 control system mainly includes a NICE3000 integrated controller for elevators, a carriage control board (MCTC-CTB-A), a display control board (MCTC-HCB-H), a carriage command board (MCTC-CCB-B)

Model	Capacity(kVA)	Input current(A)	Output current(A)	Adoptable motor(kW)
Single phase 220V, range-15%~20%
NICE-L-A/B-2002	2.3	13.2	5.2	1.1
NICE-L-A/B-2003	3.4	17	7.5	1.5
220-NICE-L-A/B-4007	9.8	29	10.3	5.5
220-NICE-L-A/B-4011	12.1	36	15.5	7.5
220-NICE-L-A/B-4015	13.9	41	19	11
220-NICE-L-A/B-4018	17.3	49.5	22.5	15
220-NICE-L-A/B-4022	23.1	62	27.7	15
220-NICE-L-A/B-4030	33	77	34.6	22
3-phase 220V,range -15%~20%
NICE-L-A/B-2002	4	13.2	9.6	3.7
NICE-L-A/B-2003	5.9	17	14	5.5
220-NICE-L-A/B-4007	17	29	18	11
220-NICE-L-A/B-4011	21	36	27	15
220-NICE-L-A/B-4015	24	41	33	22
220-NICE-L-A/B-4018	30	49.5	39	22
220-NICE-L-A/B-4022	40	62	48	22
220-NICE-L-A/B-4030	57	77	60	22
3-phase 380V,range -15%~20%
NICE-L-A/B-4002	4	6.5	5.1	2.2
NICE-L-A/B-4003	5.9	10.5	9	3.7
NICE-L-A/B-4005
