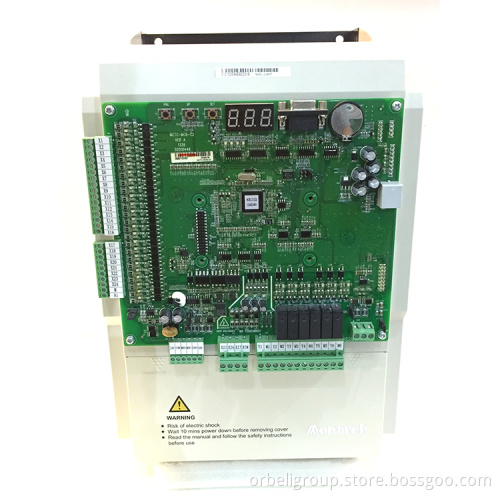

Monarch NICE 3000+ Controller - Integrated Controller with Main Board NICE-L-C-4011

Monarch NICE 3000+ Controller - Integrated Controller with Main Board NICE-L-C-4011

$550.00 - $600.00/set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	5000 Set/Sets per Year
Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Port:	Shanghai

Product Description

Monarch Elevator integrated controller

NICE series is a modularized and high-powered elevator integrative controller,
which is developed independently by Suzhou Monarch control technology Co.,Ltd.

It represents the future development trend and can satisfy the variety
needs of different factories. Compared with the traditional general-type
controller, it has compact structure, more convenient installation method. What
is prior, its advanced motor control arithmetic, motor parameter auto-tuning
(static tune and complete tune), run contactor control, brake contactor control,
bypass variable frequency energy saved control, complete variable frequency
energy saved control, speed track control are incomparable. Particular
functions like run contactor contact detection, brake contactor contact
detection, touch conglutination detection, up and down light- electricity signal,
left and right armrest signal, step loss detection provide the most dependable
guarantee for the safe movement of the elevator.
Moreover , the special single-key design of NICE2000 elevator control system
makes the complicated keyboard operation much more easier; it can use the
general terminal RJ45 to connect to any position of the operation panel, that
enables the adjust of the elevator convenient and simple.

Model	Capacity(kVA)	Input current(A)	Output current(A)	Adoptable motor(kW)
Single phase 220V, range-15%~20%
NICE-L-A/B-2002	2.3	13.2	5.2	1.1
NICE-L-A/B-2003	3.4	17	7.5	1.5
220-NICE-L-A/B-4007	9.8	29	10.3	5.5
220-NICE-L-A/B-4011	12.1	36	15.5	7.5
220-NICE-L-A/B-4015	13.9	41	19	11
220-NICE-L-A/B-4018	17.3	49.5	22.5	15
220-NICE-L-A/B-4022	23.1	62	27.7	15
220-NICE-L-A/B-4030	33	77	34.6	22
3-phase 220V,range -15%~20%
NICE-L-A/B-2002	4	13.2	9.6	3.7
NICE-L-A/B-2003	5.9	17	14	5.5
220-NICE-L-A/B-4007	17	29	18	11
220-NICE-L-A/B-4011	21	36	27	15
220-NICE-L-A/B-4015	24	41	33	22
220-NICE-L-A/B-4018	30	49.5	39	22
220-NICE-L-A/B-4022	40	62	48	22
220-NICE-L-A/B-4030	57	77	60	22
3-phase 380V,range -15%~20%
NICE-L-A/B-4002	4	6.5	5.1	2.2
NICE-L-A/B-4003	5.9	10.5	9	3.7
NICE-L-A/B-4005

Input Voltage: Single Phase 220V, Three Phase 220V, Three Phase 380V

Power Capacity (kVA):2.3~33,4~57,4~69

Input Current (A):13.2~77,13.2~77,6.5~93

Output Current (A):5.2~34.6,9.6~60,5.1~91

Appropriate Motor (kW):1.1~22,3.7~22,2.2~45

NICE3000 Elevator Integrated Controller

The NICE 3000 series of integrated controllers for elevators was independently developed and manufactured by MCTC, organically combining elevator control and motor drive to Create a new generation of intelligent, vector integrated controllers for elevators. The NICE3000 control system mainly includes a NICE3000 integrated controller for elevators, a carriage control board (MCTC-CTB-A), a display control board (MCTC-HCB-H), a carriage command board (MCTC-C).

Monarch NICE 3000+ Controller Integrated Controller With Main Board NICE-L-C-4011
