Lift Safety Component: Oil Buffer OH-80/175/210 Elevator Buffer Spring

Lift Safety Component: Oil Buffer OH-80/175/210 Elevator Buffer Spring

$50.00 - $150.00/set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1000 Set/Sets per Month
Payment Type:	L/C,Western Union,D/P,T/T
Port:	SHANGHAI

Product Description

Thanks for choosing HITECH ELEVATOR as your business partner

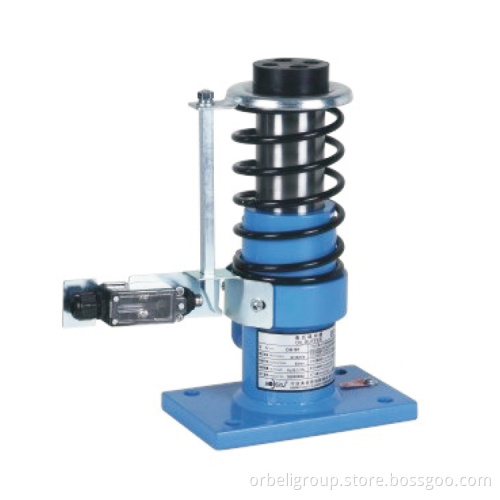

ELEVATOR HYDRAULIC BUFFER

This series are spring built-out hydraulic buffers. Used at the bottom of the shaft, they can be reset manually and automatically. If the elevator gets out of order and slides down, it will take the decelerating effect, and the knockout rod will trigger the switch, and then the safety circuit is enabled.

Rated speed: v ≤1.0m/s

Buffer weigh range: 600kg~3000kg

Pillar gully routing (S): 80mm

Free State (L): 313mm

Hydraulic oil brand: HL-46

Oil is needed: 0.33L

Lift Safety Components Oil Buffer OH-80/175/210 Elevator Buffer Spring

Type	Rated speed	Buffer weight range	Pillar guly riuting	Free tate	Hydraulic oil brand	Oil is needed
OH-80	≤1.0	600~3000	80	313	HL-46	0.33
OH-175	≤1.6	600~3000	175	510	HL-46	0.6
OH-210	≤1.75	700~3000	210	600	HL-46	0.8
