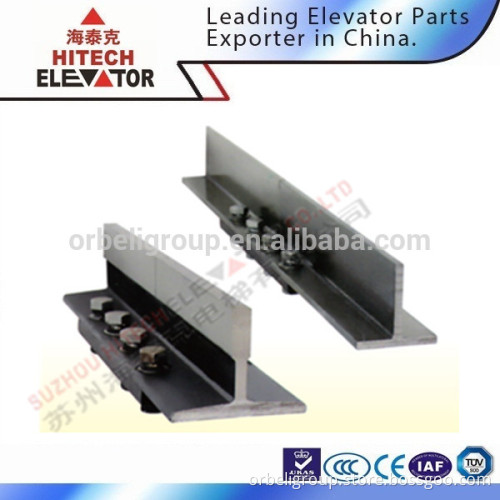

Elevator Guide rail/guide rail for elevators/Machined guide rail

  Thanks for choosing HITECH ELEVATOR as your business partner We can provide all types of STEP boards, elevator component, safety component,lift parts,etc.   Specifications                                                        Elevator Guide Rail,elevator parts
1.Machined guide rail
2.Cold drawn guide rail
3.Hollow guide rail
4.special guide rail
cold drawn guide rail fishplates, machined guide rail fishplates, special thicness fishplates, T section fishplates, forged clips,sliding clamps, sliding clips, T-clips    basic dimensions of elevator guide rails and their accessories

Item code	guide rail	fishplate	clip	screw
T45/A	45mm*45mm*5mm	160*50*8mm	8k	M8*25
T50/A	50mm*50mm*5mm	200*50*8mm	8k	M8*25
TH3	75mm*55mm*10mm	220*72*2.5mm	3k	M8*25
TH3A	78mm*60mm*16.4mm	200*78*4mm	3k	M8*25
TH5	87mm*60mm*16.4mm	350*87*4mm	5k	M10*25
TH5A	78mm*60mm*16.4mm	200*78*4mm	5k	M10*25
T70-1/B	70mm*65mm*9mm	250*70*10mm	8k	M12*35
T75-3/B	75mm*62mm*10mm	240*75*10mm	8k	M12*35
T78/B	78mm*56mm*10mm	240*75*10mm	8k	M12*35
T82/B	82.5mm*68.25mm*9mm	216*80*10mm	13k	M12*35
T89/B	89mm*62mm*16mm	305*90*13mm	13k	M12*40
T90/B	90mm*75mm*16mm	305*90*13mm	13k	M12*40
T114/B	114mm*89mm*16mm	305*120*18mm	18k	M16*50
T127-2/B	127mm*89mm*16mm	305*130*18mm	24k	M16*55

 material: all types of guide rails material is Q235.

Item Grade	Chemical Composition
	C	Mn	Si	S	P
Q235	0.14-0.22	0.35-0.65	0.12-0.30	≤0.05	≤0.045
Mechanical property
Yield Strength N/mm2		Tensile Strength N/mm2		Elongation
≥235		375-520		≥24

  remarks All our products are produced according to ISO7465 international standard.  If you want details, please contact me. Product Pictures                                                     Packing and shipment                                                Our standard packing: all types of guide rails are packed in bundles, with protective sheathes protecting both ends and each bundle repacked in blue plastic sheeting.If you request, we can also pack at your request. Competitive Advantages Rich experience in elevator business with a professional team of elevator experts Good quality products with low sales price to help customer save the cost Cooperation with Chinese famous elevator parts manufacturers with low purchase price A wide range of products listed in our website. Easy access to the technical specifications and sales price  Mission and Services To build up an one-stop elevator parts E-market for overseas buyers. To help customers to source the cheapest but quality elevator parts. To help customers to make a lift-parts package and ensure the timely delivery. To offer free consultance in regard to elevator technology and business. To develop and share market together with customers
