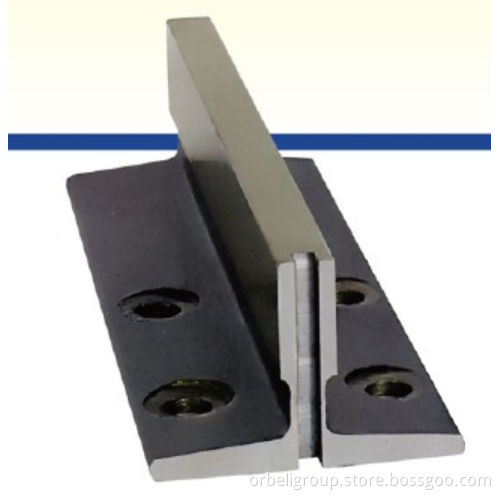

Elevator Guide Rail T50 Cold Drawn T Type

Elevator Guide Rail T50 Cold Drawn T Type

$52.00 - $70.00/piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1000 Piece/Pieces per Month
Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Port:	Shanghai

Product Description

Thanks for choosing HITECH ELEVATOR as your business partner

Elevator Guide Rail, T-type, Hollow guide rail.

Elevator Guide Rail,elevator parts
1.Machined guide rail
2.Cold drawn guide rail
3.Hollow guide rail
4.special guide rail

cold drawn guide rail fishplates, machined guide rail fishplates, special thicness fishplates,

T section fishplates, forged clips,sliding clamps, sliding clips, T-clips

Machined Elevator guide rail

standard: ISO 7465.

products: T70-1/B,T75,T78,T82,T89,T90,T114,T127,T45,T50.

simple display of information of elevator guide rails T70-1/B

1.processing methods: machining

2. packing:

Our standard packing: all types of guide rails are packed in bundles, with protective sheathes protecting both ends and each bundle repacked in blue plastic sheeting.

If you request, we can also pack at your request.

Elevator Guide Rail and Accessories:

basic dimensions of elevator guide rails and their accessories

Item code	guide rail	fishplate	clip	screw
T45/A	45mm45mm5mm	160508mm	8k	M8*25
T50/A	50mm50mm5mm	200508mm	8k	M8*25
TH3	75mm55mm10mm	220722.5mm	3k	M8*25
TH3A	78mm60mm16.4mm	200784mm	3k	M8*25
TH5	87mm60mm16.4mm	350874mm	5k	M10*25
TH5A	78mm60mm16.4mm	200784mm	5k	M10*25
T70-1/B	70mm65mm9mm	2507010mm	8k	M12*35
T75-3/B	75mm62mm10mm	2407510mm	8k	M12*35
T78/B	78mm56mm10mm	2407510mm	8k	M12*35
T82/B	82.5mm68.25mm9mm	2168010mm	13k	M12*35
T89/B	89mm62mm16mm	3059013mm	13k	M12*40
T90/B	90mm75mm16mm	3059013mm	13k	M12*40
T114/B	114mm89mm16mm	30512018mm	18k	M16*50
T127-2/B	127mm89mm16mm	30513018mm	24k	M16*55

3. material: all types of guide rails material is Q235.

Item Grade	Chemical Composition
	C	Mn	Si	S	P
Q235	0.14-0.22	0.35-0.65	0.12-0.30	≤0.05	≤0.045
Mechanical property
Yield Strength N/mm2		Tensile Strength N/mm2		Elongation
≥235		375-520		≥24

4.our other types of guide rails basic dimensions: are as follow

T75-3/B75mm*62mm*10mmT89/B89mm*62mm*16mmT127-2/B127mm*89mm*16mm

T90/B90mm*75mm*16mmT78/B78mm*56mm*10mmT114/B 114mm*89mm*16mm

T82/B82.5mm*68.25mm*9mm T45/A45mm*45mm*5mmT50/A 50mm*50mm*5mm

5.remarks

All our products are produced according to ISO7465 international standard. If you have your own standard, we can also produce according to your specific dimensions. Dimensions displayed here is only a brief version. If you want details, please contact me.

Elevator Guide Rail/T50/Cold Drawn t Type
