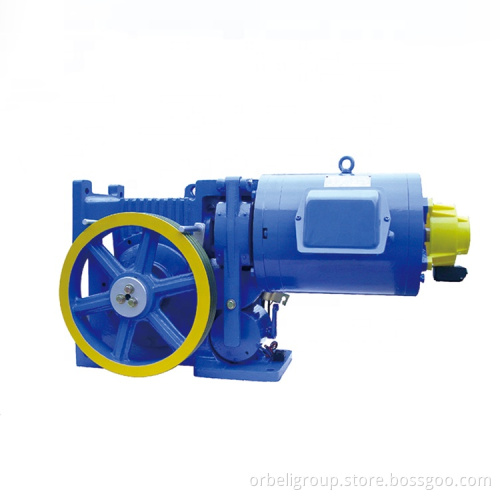

YJF220 Passenger Elevator Traction Machine for Drive System

YJF220 Passenger Elevator Traction Machine for Drive System

$1000.00 - $3000.00/piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: ShangHai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1000 Piece/Pieces per Month
Payment Type:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Port:	ShangHai

Product Description

Thanks for choosing HITECH ELEVATOR as your business partner.

We can provide all types of Geared machines,VVVF or AC 2 speed.

ELEVATOR Geared traction machine YJF220- AC-2

Drive System/passenger Elevator Traction Machine/YJF220/lift Motor

Model	Load KG	Speed (m/s)	Ratio	Wire Rope (mm)	Main Sheave & Pitch	Roping	Motor Specification
Model	Load KG	Speed (m/s)	Ratio	Wire Rope (mm)	Main Sheave & Pitch	Roping	Power (Kw)	Voltage	rpm	Currents (A)	Pole
YJF120WL VVVF VILLA Static Load:2500
YJF120WL-VVVF	320	0.5	49:1	8-3	325-14	1:1	2.2	380V, 50HZ	1440	5	4P
	320	0.72	42:1	10×4	400-16	1:1	3.5	380V, 50HZ	1440	8.5	4P
	320	1.0	31:1	10*4	400-16	1:1	3.5	380V, 50HZ	1440	8.5	4P
	400	0.5	49:1	8*4	325-14	1:1	3.5	380V, 50HZ	1440	8.5	4P
	400	0.72	42:1	10×4	400-16	1:1	4.5	380V, 50HZ	1440	9.5	4P
	400	1.0	31:1	10*4	400-16	1:1	4.5	380V, 50HZ	1440	9.5	4P
	450	0.5	49:1	8*4	325-14	1:1	4.5	380V, 50HZ	1440	9.5	4P
	450	0.72	42:1	10×4	400-16	1:1	5.5	380V, 50HZ	1440	12	4P
	450	1.0	31:1	10*4	400-16	1:1	5.5	380V, 50HZ	1440	12	4P
	500	0.5	68:1	10*4	450-16	1:1	5.5	380V, 50HZ	1440	12	4P
YJF140WL VVVF-VILLA Static Load:4000KGS
	500	1.0	36:1	12*4	480-18	1:1	5.5	380V, 50HZ	1440	12	4P
YJF140WL VVVF-VILLA Static Load:4000KGS	630	0.5	59:1	10*4	400-16	1:1	5.5	380V, 50HZ	1440	12	4P
	630	0.8	38:1	10*5	400-16	1:1	6.4	380V, 50HZ	1440	13.8	4P
	630	1.0	36:1	12*4	480-18	1:1	6.4	380V, 50HZ	1440	13.8	4P
	630	1.5	51:2	12*4	500-18	1:1	..	380V, 50HZ	1440	18	4P
	750	0.5	59:1	10*5	400-16	1:1	6.4	380V, 50HZ	1440	13.8	4P
	750	0.75	51:1	12*4	500-18	1:1	7.5	380V, 50HZ	1440	15.2	4P
	750	1.0	36:1	12*4	480-18	1:1	7.5	380V, 50HZ	1440	15.2	4P
	800	0.5	68:1	10*5	450-16	1:1	7.5	380V, 50HZ	1440	15.2	4P
YJF160WL VVVF Static Load:5500KGS
YJF160WL-VVVF	630	1.5	51:2	13*4	520-20	1:1	9	380V, 50HZ	1440	18.5	4P
	750	1	41:1	13*4	520-20	1:1	7.5	380V, 50HZ	1440	15.2	4P
	800	0.5	70:1	12*5	480-18	1:1	6.4	380V, 50HZ	1440	13.8	4P
	800	1	41:1	13*4	520-20	1:1	9	380V, 50HZ	1440	18.5	4P
YJF220-VVVF-Static Load:8000KGS
YJF220-VVVF	1000	0.5	57:1	13*5	580-20	1:1	7.5	380V, 50HZ	960	17.4	6P
	800	1.0	47:1	13*5	610-20	1:1	7.5	380V, 50HZ	1440	15.2	4P
	1000	1.0	47:1	13*5	610-20	1:1	11	380V, 50HZ	1440	23	4P
	1000	0.63	47:1	13*5	610-20	1:1	7.5	380V, 50HZ	1440	15.2	4P
	800	1.5	57:2	13*5	580-20	1:1	11	380V, 50HZ	1440	23	4P
	1000	1.5	57:2	13*5	580-20	1:1	15	380V, 50HZ	1440	30.5	4P
	1000	1.75	49:2	13*5	580-20	1:1	18.5	380V, 50HZ	1440	38	4P
YJF250-2000VVVF-Static Load:12000KGS
YJF250-2000VVVF-Static Load:12000KGS	1500	0.63	52:2	13*6	640-20	2:1	11	380V, 50HZ	960	26	6P
YJF250-2000VVVF-Static Load:12000KGS	2000	0.63	52:2	13*6	640-20	2:1	15	380V, 50HZ	960	32	6P
YJF250-3000VVVF-Static Load:12000KGS
YJF250-3000 VVVF	1500	1.0	63:2	13*6	640-20	1:1	15	380V, 50HZ	960	32	6P
	3000	0.5	63:2	13*6	640-20	2:1	15	380V, 50HZ	960	32	6P
	1600	1.0	63:2	13*6	640-20	1:1	18.5	380V, 50HZ	960	41	6P
	3200	0.5	63:2	13*6	640-20	2:1	18.5	380V, 50HZ	960	41	6P
	1250	1.5	63:2	16*6	640-25	1:1	22	380V, 50HZ	1440	45	4P
	1600	1.5	63:2	16*6	640-25	1:1	26	380V, 50HZ	1440	52	4P
YJF310-VVVF-Static Load:12500KGS
YJF310-VVVF	5000	0.5	69:2 ZINC GEAR	16*6	700-25	2:1	22	380V, 50HZ	950	45	6P
YJF310-VVVF	5000	0.25	69:2 ZINC GEAR	16*6	700-25	2:1	19	380V, 50HZ	950	41	6P

Drive System/passenger Elevator Traction Machine/YJF220/lift Motor

Competitive Advantages

Rich experience in elevator business with a professional team of elevator experts

Good quality products with low sales price to help customer save the cost

Cooperation with Chinese famous elevator parts manufacturers with low purchase price

A wide range of products listed in our website.

Easy access to the technical specifications and sales price

Mission and Services

To build up an one-stop elevator parts E-market for overseas buyers.

To help customers to source the cheapest but quality elevator parts.

To help customers to make a lift-parts package and ensure the timely delivery.

To offer free consultance in regard to elevator technology and business.

To develop and share market together with customers

HITECH ELEVATOR has been supplying various types and specifications of elevator traction machine with different speeds. And HITECH welcomes you to visit our website or email us to get traction machine preliminary inquiry sheet for your selection to meet your specific requirement.
