Thanks for choosing HITECH ELEVATOR as your business partner.

We can provide all types of Geared machines,VVVF or AC 2 speed.

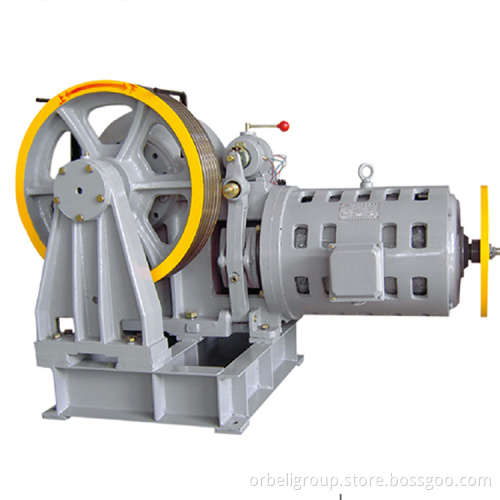

ELEVATOR Geared traction machine   YJF100-k





 Elevator Motor for Dumbwaiter Geard Elevator Traction Machine for LiftElevator Motor for Dumbwaiter Geard Elevator Traction Machine for LiftElevator Motor for Dumbwaiter Geard Elevator Traction Machine for LiftElevator Motor for Dumbwaiter Geard Elevator Traction Machine for LiftElevator Motor for Dumbwaiter Geard Elevator Traction Machine for Lift





Model Load   KG Speed   (m/s) Ratio Wire Rope (mm) Main Sheave & Pitch  Roping  Motor Specification
Power  (Kw) Voltage rpm Currents (A) Pole
YJF120WL VVVF VILLA  Static Load:2500
YJF120WL-VVVF 320 0.5 49:1 8-3 325-14 1:1 2.2 380V, 50HZ 1440 5 4P
320 0.72 42:1 10×4 400-16 1:1 3.5 380V, 50HZ 1440 8.5 4P
320 1.0 31:1 10*4 400-16 1:1 3.5 380V, 50HZ 1440 8.5 4P
400 0.5 49:1 8*4 325-14 1:1 3.5 380V, 50HZ 1440 8.5 4P
400 0.72 42:1 10×4 400-16 1:1 4.5 380V, 50HZ 1440 9.5 4P
400 1.0 31:1 10*4 400-16 1:1 4.5 380V, 50HZ 1440 9.5 4P
450 0.5 49:1 8*4 325-14 1:1 4.5 380V, 50HZ 1440 9.5 4P
450 0.72 42:1 10×4 400-16 1:1 5.5 380V, 50HZ 1440 12 4P
450 1.0 31:1 10*4 400-16 1:1 5.5 380V, 50HZ 1440 12 4P
500 0.5 68:1 10*4 450-16 1:1 5.5 380V, 50HZ 1440 12 4P
YJF140WL VVVF-VILLA   Static Load:4000KGS
  500 1.0 36:1 12*4 480-18 1:1 5.5 380V, 50HZ 1440 12 4P
YJF140WL VVVF-VILLA   Static Load:4000KGS 630 0.5 59:1 10*4 400-16 1:1 5.5 380V, 50HZ 1440 12 4P
630 0.8 38:1 10*5 400-16 1:1 6.4 380V, 50HZ 1440 13.8 4P
630 1.0 36:1 12*4 480-18 1:1 6.4 380V, 50HZ 1440 13.8 4P
630 1.5 51:2 12*4 500-18 1:1 .. 380V, 50HZ 1440 18 4P
750 0.5 59:1 10*5 400-16 1:1 6.4 380V, 50HZ 1440 13.8 4P
750 0.75 51:1 12*4 500-18 1:1 7.5 380V, 50HZ 1440 15.2 4P
750 1.0 36:1 12*4 480-18 1:1 7.5 380V, 50HZ 1440 15.2 4P
800 0.5 68:1 10*5 450-16 1:1 7.5 380V, 50HZ 1440 15.2 4P
YJF160WL VVVF   Static Load:5500KGS
YJF160WL-VVVF  630 1.5 51:2 13*4 520-20 1:1 9 380V, 50HZ 1440 18.5 4P
750 1 41:1 13*4 520-20 1:1 7.5 380V, 50HZ 1440 15.2 4P
800 0.5 70:1 12*5 480-18 1:1 6.4 380V, 50HZ 1440 13.8 4P
800 1 41:1 13*4 520-20 1:1 9 380V, 50HZ 1440 18.5 4P
YJF220-VVVF-Static Load:8000KGS
YJF220-VVVF 1000 0.5 57:1 13*5 580-20 1:1 7.5 380V, 50HZ 960 17.4 6P
800 1.0 47:1 13*5 610-20 1:1 7.5 380V, 50HZ 1440 15.2 4P
1000 1.0 47:1 13*5 610-20 1:1 11 380V, 50HZ 1440 23 4P
1000 0.63 47:1 13*5 610-20 1:1 7.5 380V, 50HZ 1440 15.2 4P
800 1.5 57:2 13*5 580-20 1:1 11 380V, 50HZ 1440 23 4P
1000 1.5 57:2 13*5 580-20 1:1 15 380V, 50HZ 1440 30.5 4P
1000 1.75 49:2 13*5 580-20 1:1 18.5 380V, 50HZ 1440 38 4P
YJF250-2000VVVF-Static Load:12000KGS
YJF250-2000VVVF-Static Load:12000KGS 1500 0.63 52:2 13*6 640-20 2:1 11 380V, 50HZ 960 26 6P
2000 0.63 52:2 13*6 640-20 2:1 15 380V, 50HZ 960 32 6P
YJF250-3000VVVF-Static Load:12000KGS
YJF250-3000 VVVF 1500 1.0 63:2 13*6 640-20 1:1 15 380V, 50HZ 960 32 6P
3000 0.5 63:2 13*6 640-20 2:1 15 380V, 50HZ 960 32 6P
1600 1.0 63:2 13*6 640-20 1:1 18.5 380V, 50HZ 960 41 6P
3200 0.5 63:2 13*6 640-20 2:1 18.5 380V, 50HZ 960 41 6P
1250 1.5 63:2 16*6 640-25 1:1 22 380V, 50HZ 1440 45 4P
1600 1.5 63:2 16*6 640-25 1:1 26 380V, 50HZ 1440 52 4P
YJF310-VVVF-Static Load:12500KGS
YJF310-VVVF 5000 0.5 69:2 ZINC GEAR 16*6 700-25 2:1 22 380V, 50HZ 950 45 6P
5000 0.25 16*6 700-25 2:1 19 950 41 6P







  Elevator Motor for Dumbwaiter Geard Elevator Traction Machine for Lift

Elevator Motor for Dumbwaiter Geard Elevator Traction Machine for LiftElevator Motor for Dumbwaiter Geard Elevator Traction Machine for LiftElevator Motor for Dumbwaiter Geard Elevator Traction Machine for LiftElevator Motor for Dumbwaiter Geard Elevator Traction Machine for LiftElevator Motor for Dumbwaiter Geard Elevator Traction Machine for Lift



Competitive Advantages

Rich experience in elevator business with a professional team of elevator experts

Good quality products with low sales price to help customer save the cost

Cooperation with Chinese famous elevator parts manufacturers with low purchase price

A wide range of products listed in our website.

Easy access to the technical specifications and sales price



Mission and Services

To build up an one-stop elevator parts E-market for overseas buyers.

To help customers to source the cheapest but quality elevator parts.

To help customers to make a lift-parts package and ensure the timely delivery.

To offer free consultance in regard to elevator technology and business.

To develop and share market together with customers



HITECH ELEVATOR has been supplying various types and specifications of elevator traction machine with different speeds. And HITECH welcomes you to visit our website or email us to get traction machine preliminary inquiry sheet for your selection to meet your specific requirement.
