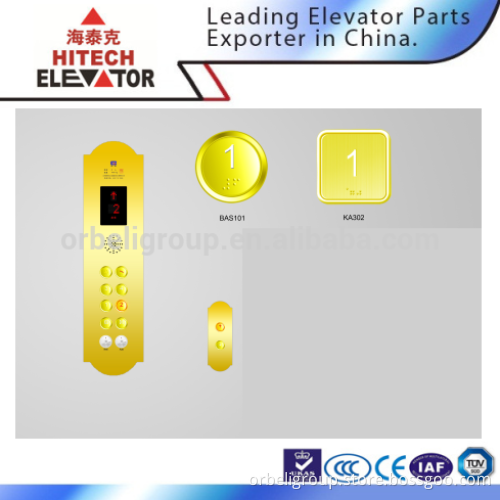

Thanks for choosing HITECH ELEVATOR as your business partner  Elevator Touch LCD LOP Elevator parts, elevator spare parts- Elevator COP 1. Series elevator COP 2. Box less type LOP 3. ISO9001 certificate   Elevator parts, Elevator spare parts, elevator component - Elevator COP & calling board Feature&Specification:   1.Jump wiring setting:
1,2 were welded together: Common anode
2,3 were welded together: Common cathode
2.Connection instruction:
1),Connector 1:JP3;A4T44707 Instruction- 3 -1 2 3 4 5A B C D E
2),connector 2:JP4;1 2 3 4 5 6 7 8
FIRE FULL STOP GND DC24V UP DOWN
Fuction :FIRE,FULL,STOP
Elevator direction:UP,DOWN
Power input:GND,DC24V
3),Connector 3,4:JP5,JP6;1 2 3 4LED+ LED- SW1 SW2 circuit diagram:
Specification
1.Touch button parameter
Signal answer time 260ms Signal holding time 260msSelf-adapt time 18.6s Movability capacitance value range
When touch PAD reach to 1/32 of default value, signal will be wake, value is about 1.1pF
2.Working parameter
Working voltage DC24V
Power In or low to 2.88W
Working environment -20~70℃,10~90%RH
Deposited
environment
-20-75℃,10-90%RH         ELEVATOR COP LOP, Car operation panel, Lobby opertaion panel.

Serial No.	COPLOP	HCP01	1-22	1400	1360	565
1	COPLOP	HCP02	1-32	1650	1610	690
2	COPLOP	HCP03	1-12	166*150*30*65*20	1200	1160	465
	COPLOP		1-22		1400	1360	565
	COPLOP		1-332		1650	1610	690
3	COPLOP	HCP04	2-12	180*160*30*65*10	1200	1160	465
4	COPLOP		13-22		1400	1360	565
5	COPLOP		23-32		1650	1610	690
6	COPLOP	HCP05	2-12	180*160*30*65*40	1200	1140	455
	COPLOP		13-22		1400	1340	555
	COPLOP		23-32		1650	1610	680

  Competitive Advantages Rich experience in elevator business with a professional team of elevator experts Good quality products with low sales price to help customer save the cost Cooperation with Chinese famous elevator parts manufacturers with low purchase price A wide range of products listed in our website. Easy access to the technical specifications and sales price   Mission and Services To build up an one-stop elevator parts E-market for overseas buyers. To help customers to source the cheapest but quality elevator parts. To help customers to make a lift-parts package and ensure the timely delivery. To offer free consultance in regard to elevator technology and business. To develop and share market together with customers
