Elevator Cop Lop TOUCH LCD Button Panel

Elevator cop lop, cop lop elevator button panel/TOUCH LCD

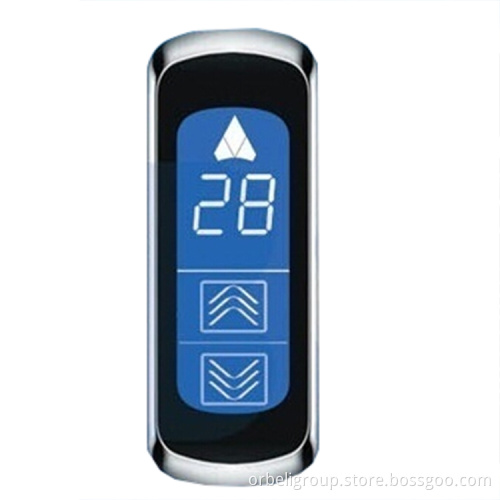

Elevator Touch LCD LOP

Elevator parts, elevator spare parts- Elevator COP

1. Series elevator COP

2. Box less type LOP

3. ISO9001 certificate

Elevator parts, Elevator spare parts, elevator component - Elevator COP & calling board

Feature&Specification:

1.Jump wiring setting:
1,2 were welded together: Common anode
2,3 were welded together: Common cathode
2.Connection instruction:
1),Connector 1:JP3;A4T44707 Instruction- 3 -1 2 3 4 5A B C D E
2),connector 2:JP4;1 2 3 4 5 6 7 8

FIRE FULL STOP GND DC24V UP DOWN
Fuction :FIRE,FULL,STOP
Elevator direction:UP,DOWN
Power input:GND,DC24V
3),Connector 3,4:JP5,JP6;1 2 3 4LED+ LED- SW1 SW2 circuit diagram:
Specification
1.Touch button parameter
Signal answer time 260ms Signal holding time 260msSelf-adapt time 18.6s Movability capacitance value range
When touch PAD reach to 1/32 of default value, signal will be wake, value is about 1.1pF
2.Working parameter
Working voltage DC24V
Power In or low to 2.88W
Working environment -20~70℃,10~90%RH
Deposited
environment
-20-75℃,10-90%RH

ELEVATOR COP LOP, Car operation panel, Lobby opertaion panel.
