YTZP ZrO2 Zirconia ceramic sleeve
- Delivery Time:
- 20 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu, China (Mainland) |
|---|
Product Description
Product Description

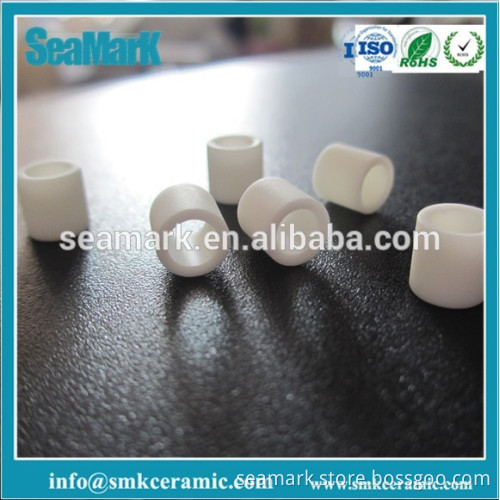

YTZP ZrO2 Zirconia ceramic sleeve. Zirconia has high strength, wear resistance, and flexibility far beyond those of most other technical ceramics. Especially in small diameter ZrO2 zirconia ceramic sleeve. this this our main products. we can sharpe diameter from 0.5mm to 100mm. The Zirconia Ceramic sleeve has good strength with high density. Zirconia ceramic sleeve techinial Data.
Application 1) High power equipments.
2) IC MOS pipe
3) High frequency prower source, communication, mechanical equipment.
4) Heavy current, heavy voltage, high temperature, thermal conductive insulating parts. Overview about Seamark. Suzhou Seamark Fine Ceramics Co.,Ltd specialize in researching, developing and providing customized fine ceramic solution. We develop, manufacture and supply precision ceramic products which required hard wearing, lightweight, high temperature, with excellent chemical resistance, good thermal shock and offer enhanced electrical and thermal insulation properties. The main material in Seamark including Aluminium Oxide (Al2O3), Zirconium Oxide (ZrO2), Silicone Carbide (SSiC, RBSiC), metalized ceramics etc.
As a professional manufacturer of ceramic products,Seamark has been working in this field for 10 years. Thanks to the support of our exalted customers and laborious employee. Our enterprise is developing fast. It’s our duty to provide high quality products and good service to our customers. We can supply the products according to customer's drawings, samples and performance requirement. If you need any further information, please do not hesitate to contact us .or you can visit our website. www.smkceramic.com Suzhou Seamark Fine Ceramics Company.
Property | Density | g/cm3 | 6 |
Sintering Temperature | ℃ | 1600 | |
Weibull Modulus | m | 23 | |
Vickers Hardness | HV0.5 | 1300 | |
Flexural Strength | Mpa | 1000 | |
|
Thermal Performance | Thermal Expansion | X10-6/K | 10 |
Heat Resistance Impact Force | T(℃) | 360 | |
Thermal Conductivity | W/mk | <2 | |
Thermal Shock Resistance | ΔT℃ | 270 | |
Highest Application Temperature | ℃ | 1000 | |
|
Physical Properties
| Compressive Strength | Mpa | 3000 |
Fracture Toughness | Map.m3/2 | 6-8 | |
Modulus Of Elasticity | GPa | 200 | |
Impact Resistance | MPa.m1/2 | 8 | |
|
Electrical Characteristics | Volume Resistivity at 20℃ | Ωcm | >10^12 |
Dielectric breakdown strength | KV/mm | - | |
Dielectric constant | 100MHz(E) | - | |
| 1 MHZ dielectric loss Angle at 20℃ |
tanδ | - |
Application 1) High power equipments.2) IC MOS pipe
3) High frequency prower source, communication, mechanical equipment.
4) Heavy current, heavy voltage, high temperature, thermal conductive insulating parts. Overview about Seamark. Suzhou Seamark Fine Ceramics Co.,Ltd specialize in researching, developing and providing customized fine ceramic solution. We develop, manufacture and supply precision ceramic products which required hard wearing, lightweight, high temperature, with excellent chemical resistance, good thermal shock and offer enhanced electrical and thermal insulation properties. The main material in Seamark including Aluminium Oxide (Al2O3), Zirconium Oxide (ZrO2), Silicone Carbide (SSiC, RBSiC), metalized ceramics etc.
As a professional manufacturer of ceramic products,Seamark has been working in this field for 10 years. Thanks to the support of our exalted customers and laborious employee. Our enterprise is developing fast. It’s our duty to provide high quality products and good service to our customers. We can supply the products according to customer's drawings, samples and performance requirement. If you need any further information, please do not hesitate to contact us .or you can visit our website. www.smkceramic.com Suzhou Seamark Fine Ceramics Company.
