Custom high quality alumina ceramic sleeve/for chiller equipment

Specifications high quality alumina ceramic sleeve

on time delivery

Excellent wear and abrasion resistance.

High strength

Custom high quality alumina ceramic sleeve/for chiller equipment

Product Name:	Alumina ceramic Sleeve

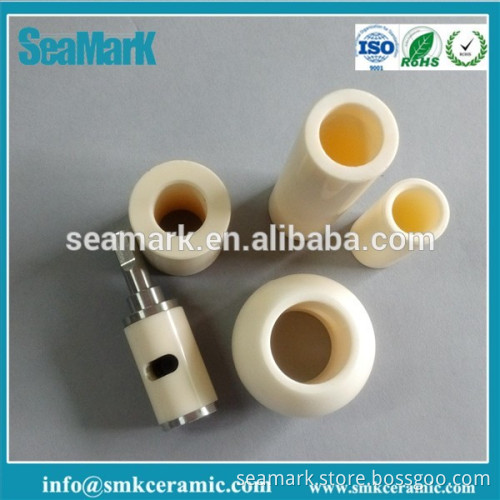

Size:	According to drawings(Customized) The sizes in picture is  OD20*ID12*36mm.
Material:	zirconia ceramic / Alumina ceramic / Silicon carbide ceramic/ Silicon nitride etc.
Accuracy:	Accuracy Of Machining:+/-0.01mm
	Accuracy Of Grinding:+/-0.005mm
	Surface Roughness:Ra0.02
	Parallelism:0.01mm
	Verticality:+/-0.005mm
	Concentricity:0.01mm
Application:	Pump motor, Car industrial, Chemical, Mechanical Equipment, etc.
Drawing:	JPEG, PDF, CAD, IGS Accepted
services:	Quality assurance, on time delivery. comparative price.
Design:	Design and improvement to meet your individual demands.
Production:	High precision production, high standard and strict requirement.
Quality:	ISO9001 Quality System Management Assurance
Products:	Custom made service for you.
Payment:	T/T,30% Prepaid,70%before shipment.
Logistics:	Air Express or Sea shipment.
Customer Service:	24-hours standby, Critical listening your every suggestion or demand and feedback ASAP.

  Alumina ceramic material Property. Alumina ceramics is an alumina (Al2O3) as a main component a ceramic material; it divided into high purity type and ordinary type two kinds.   High purity alumina ceramic is Al2O3 content in more than 99.9% of the ceramic material, due to its high sintering temperature 1650-1990℃, the transmission wavelength of 1 ~ 6μm. Use of its light transmittance and resistance can be used as the alkali metal sodium lamp; used as a high-frequency integrated circuit substrate and the insulating material in the electronic industry. The Ordinary type including 99%,95% 90%,85% 75% alumina etc. Such aluminum oxide Used as refractory material and or make wear-resisting corrosion resistance of parts.

Alumina ceramics is the most widely used advanced ceramic material. its form Methods including: dry press, grouting pressure, extrusion molding method, cold isostatic pressing, injection, stretch film, hot pressing and hot isostatic pressing molding, a variety of methods.   Alumina ceramic sleeve:     Main advantages of our alumina ceramic sleeve:    (1) High wear resistance, high temperature resistance    (2) High intensity and high hardness    (3) Long life    (4) Resistant to creep and mechanical stresses    (5) Low maintenance cost    (6) Corrosion resistance    (7) Performs in high temperature conditions    (8) Especially suit to used in high temperature, heavy duty and oil difficult working environment    (9) Range of sizes available.   Alumina ceramic Material technical parameter.

Material	——	AI-920	AI-950	AI-990	AI-997	AI-999
Texture	——	Al2O3	Al2O3	Al2O3	Al2O3	Al2O3
		>92%	>95%	>99%	>99.7%	>99.9%
Density	g/cm³	3.45	3.5	3.75	3.9	3.92
Bending strength	Mpa	340	300	330	390	390
Compressive strength	Mpa	3600	3400	3800	3900	3900
Elasticity modulus	Gpa	350	350	370	390	390
Impact resistance	Mpam½	4.2	4	4.4	5.2	5.5
Weibull Modulus	m	11	10	10	12	12
Vickers Hardness	HV 0.5	1700	1800	1800	2000	2000
Thermal expansion	10^-6K^-1	5.0-8.3	5.0-8.3	5.1-8.3	5.5-8.4	5.5-8.5
Thermal Conductivity	W/mk	18	24	25	28	30
Thermal          shock resistance	°C	220	250	250	280	280
Highest Application Temperature	°C	1500	1600	1600	1700	1700

  Similar products.   We can supply the products according to customer's drawings, samples and performance requirement. If you need any further information, please do not hesitate to contact us .or you can visit our website. We will service you all the time.   Suzhou Seamark Fine Ceramics Co., Ltd www.smkceramic.com Ms.Linda Huang Tel: +86 512 66255075 Fax: +86 512 66255030 Mob: +86 18550512237
