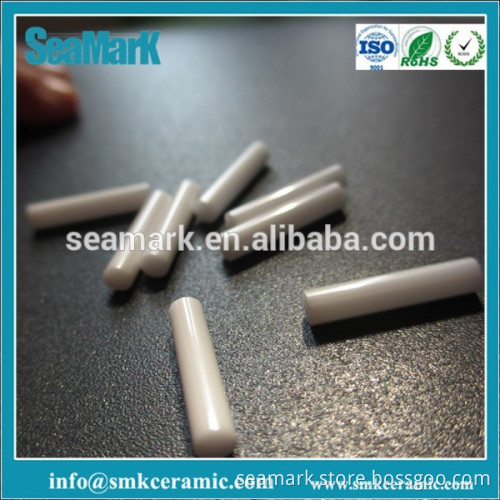

high quality with competitive price pump zirconia ceramic shaft

  high quality with competitive price pump zirconia ceramic shaft Material: zirconia ceramic high Density: above 6.0 g/cm3.   Diamter from 0.65mm to 100mm Length from 2mm to 1000mm. Custom made is available, form Method including:  isostatic pressing molding. Large stock with below pump zirconia ceramic shaft specification:

Φ1.91*36.8mm	10000set
Φ19.23*15.5mm
Φ1.91*52mm	40000set
Φ3*Φ1.923*15.5mm
Φ2.39*55mm	9000set
Φ3.2*Φ2.4*15.5mm
Φ2.485*19.2mm	20000set
Φ3.9*Φ2.5*10mm
Φ1.98*16.8mm	20000set
Φ3.9*Φ2*8mm
Φ3.16*46mm	4000pcs
Φ1.57*32mm	1000pcs

              Advantage of zirconia ceramic shaft.  1,high mechanical strength 2,high temperature, Max working temperature: 1100C. 3,good electrical insulation 4,Good chemical corrosion resistance under high temperature.  5,Excellent wear and abrasion resistance 6,Very hardness and Excellent thermal shock   Data for zirconia ceramic shaft

Property	Density	g/cm3	6
	Sintering Temperature	℃	1600
	Weibull Modulus	m	23
	Vickers Hardness	HV0.5	1300
	Flexural Strength	Mpa	1000
Thermal Performance	Thermal Expansion	X10-6/K	10
	Heat Resistance Impact Force	T(℃)	360
	Thermal Conductivity	W/mk	<2
	Thermal Shock Resistance	ΔT℃	270
	Highest Application Temperature	℃	1000
Physical Properties	Compressive Strength	Mpa	3000
	Fracture Toughness	Map.m3/2	6-8
	Modulus Of Elasticity	GPa	200
	Impact Resistance	MPa.m1/2	8
Electrical Characteristics	Volume Resistivity at 20℃	Ωcm	>10^12
	Dielectric breakdown strength	KV/mm	-
	Dielectric constant	100MHz(E)	-
	1 MHZ dielectric loss Angle at 20℃	tanδ	-



Material	ZrO2 ceramic shaft
Application area	sand mill,filling machine
	Health care,blood dialysis machine, pump, ultrafiltration pump
	High pressure washing machine
	Car industrial
	Oil well drilling equipment, mud pump etc
	Electronic insulator
	Household items such as ceramic knives, ceramic haircut knife
Processing Capacity
Dimension Range
Out Diameter	1---100
Inner Diameter	0.1---80
Length	0.5---400
Position Accurancy
Perpendicularity	0.01
Concentrictiy	0.01
Roundness	0.005
Straightness	0.005
Parallelism	0.01
Planeness	0.005
Roughness (Ra)	0.05
Fit Clearance	0.005

  We can supply the products according to customer's drawings, samples and performance requirement. If you need any further information, please do not hesitate to contact us .or you can visit our website. www.smkceramic.com
