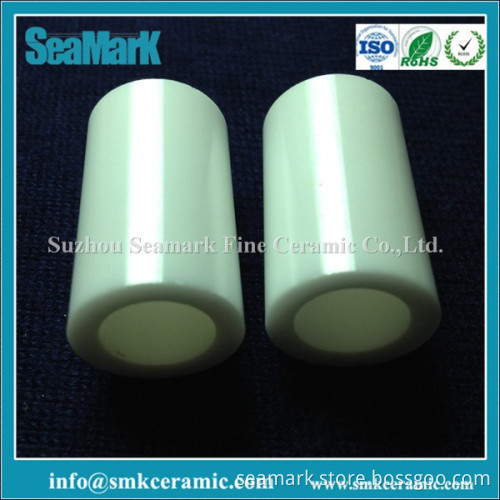

high pressure zirconia ceramic pistons

High pressure zirconia ceramic pistons.

Product Name:	zirconia ceramic pistons
Size:	According to drawings(Customized)
Material:	zirconia ceramic / Alumina ceramic / Silicon carbide ceramic/ Silicon nitride etc.
Accuracy:	Accuracy Of Machining:+/-0.01mm
	Accuracy Of Grinding:+/-0.005mm
	Surface Roughness:Ra0.02
	Parallelism:0.01mm
	Verticality:+/-0.005mm
	Concentricity:0.01mm
Application:	Pump motor, Car industrial, Chemical, Mechanical Equipment, etc.
Drawing:	JPEG, PDF, CAD, IGS Accepted
services:	Quality assurance, on time delivery. comparative price.
Design:	Design and improvement to meet your individual demands.
Production:	High precision production, high standard and strict requirement.
Quality:	ISO9001 Quality System Management Assurance
Products:	Custom made service for you.
Payment:	T/T,30% Prepaid,70%before shipment.
Logistics:	Air Express or Sea shipment.
Customer Service:	24hours standby, Critical listening your every suggestion or demand and feedback ASAP.

  Zirconia ceramic material technical Parameter.

Property	Density	g/cm3	6.0
	Sintering Temperature	℃	1600
	Weibull Modulus	m	23
	Vickers Hardness	HV0.5	1300
	Flexural Strength	Mpa	1000
Thermal Performance	Thermal Expansion	X10-6/K	10
	Heat Resistance Impact Force	T(℃)	360
	Thermal Conductivity	W/mk	<2
	Thermal Shock Resistance	ΔT℃	270
	Highest Application Temperature	℃	1000
Physical Properties	Compressive Strength	Mpa	3000
	Fracture Toughness	Map.m3/2	6-8
	Modulus Of Elasticity	GPa	200
	Impact Resistance	MPa.m1/2	8
Electrical Characteristics	Volume Resistivity at 20℃	Ωcm	>10^12
	Dielectric breakdown strength	KV/mm	-
	Dielectric constant	100MHz(E)	-
	1 MHZ dielectric loss Angle at 20℃	tanδ	-

    Packing details: 1. Standard: carton for export 2. Delivery: As per contract. Generally 30days. Production flow:           Production Machinery Our Advantage 1.High quality and competitive price. 2.Large stock and good service 3.Professional supply industrial ceramic 4.Delivery in time If you are interested in our products , we can provide the most competitive prices. When you have any request, please feel free to contact us. And any comments or precious advice are welcomed!   www.smkceramic.com Linda Huang +86 18550512237
