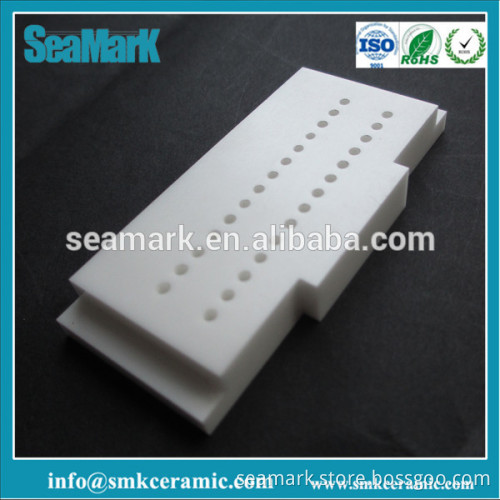

Electrical Zirconia ceramic plates

1.Electrical Zirconia ceramic plates Material: zirconia ceramic
Size:44*57*4mm
Custom made is available. The tolerance of OD can reached 0.002mm, ID can reached 0.01mm.
Best Quality with lower price.   2.Zirconia Ceramic Plates.

Property	Density	g/cm3	6
	Sintering Temperature	℃	1600
	Weibull Modulus	m	23
	Vickers Hardness	HV0.5	1300
	Flexural Strength	Mpa	1000
Thermal Performance	Thermal Expansion	X10-6/K	10
	Heat Resistance Impact Force	T(℃)	360
	Thermal Conductivity	W/mk	<2
	Thermal Shock Resistance	ΔT℃	270
	Highest Application Temperature	℃	1000
Physical Properties	Compressive Strength	Mpa	3000
	Fracture Toughness	Map.m3/2	6-8
	Modulus Of Elasticity	GPa	200
	Impact Resistance	MPa.m1/2	8
Electrical Characteristics	Volume Resistivity at 20℃	Ωcm	>10^12
	Dielectric breakdown strength	KV/mm	-
	Dielectric constant	100MHz(E)	-
	1 MHZ dielectric loss Angle at 20℃	tanδ	-

  3.Zirconia ceramic Property.  (1) High wear resistance, high temperature resistance  (2) High intensity and high hardness  (3) Long life  (4) Resistant to creep and mechanical stresses  (5) Low maintenance cost  (6) Corrosion resistance  (7) Performs in high temperature conditions  (8) Especially suit to used in high temperature, heavy duty and oil difficult working environment.   4. Packing details: 1. Standard: carton for export 2. Delivery: As per contract delivery on time 3. Shipping: As per client request. We can accept CIF, Door to Door etc. or client authorized agent we supply all necessary assistant.   5. Product application:     Widely used in the equipments of petroleum, chemical, metallurgy, mine,      electricity powder, military industry, aerospace engineering, shipbuilding, etc.   6. Samples:     We are willing to provide free sample to you for testing 7. Custom fabrication services:     Customized design services are available
 Choose Seamark Ceramic, we are now able to offer following services: 1. Before sales service: we will reply all your questions or inquiry in time, if you need some suggestion on your project, it will be our pleasure to do it. 2. In contract: our strict quality control is performed in every step of producing; we pay attention on every detail to ensure you are satisfied with our products and service.  3. After sales service: any questions, please let us know by email or phone, we will help you to deal with those problems   We can supply the products according to your drawings, samples and performance requirement. If you need any further information, please do not hesitate to contact us .or you can visit our website.     Our contacts: Suzhou Seamark Fine Ceramics Co.,Ltd. www.smkceramic.com   Ms.Linda Huang   Tel: +86 512 66255075   Fax: +86 512 66255030   Mob: +86 18550512237
