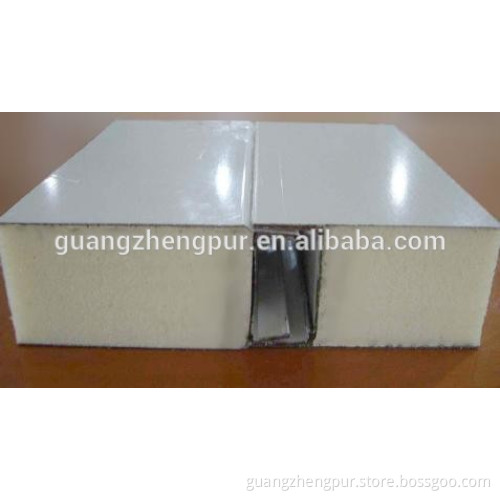

Polyurethane foam pu sandwich panel for wall and roof

Heat Insulate PU sandwich Panel/polyurethane foam Sandwich Panel/PU handmade Composite Sandwich Panel        Name: PU Sandwich Panel Other Type: ROCK WOOL/ Paper honeycomb/Aluminum  honeycomb Brand: Guangzheng. Materials: Cold-roll Steel EPS: Fireproof, hot & sound insulation, waterproof Working life: More than 20 years... Specification

Color steel foam purification sandwich panel / EPS purification sandwich panel
Type	color steel  foam sandwich panel (overlap joint)  All the screw and accessories are available
Dimensions	Total thickness	50-200mm
	Width	950/960mm  (effective  width)
	Length	Less than 11.8m
External face	Material	PPGI
	Thickness	0.4-0.6mm
	Thickness of the zinc	80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	20 micron
	Color	According to the RAL
	Pattern	Nearly plain
Insulation	Optional foam Material	EPS
	Thickness	50-200mm
	Density	8-20kg/m3
	Thermal conductivity	0.02~0.03w/mk
Internal face	Material	PPGI
	steel thickness	0.1-0.8mm
	Color	As your request
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	7micron
	Pattern	Plain

    Advantage:   1.Light in weight: 8-20kg/m3, easy to install(donnot need crane), save more construction period and low the cost.
2. Excelent Sound Insulation, heat insulation, waterproof and damp resistant with it's good appearance.
3. Large load: Used as supporting structure and defense device for it's characteristic of high intension rigidity.
4. Panel length is according to the buyer's request, and the steel color is flexible based on the RAL standard, that makes your building more beautiful.
5. Eco-friendly   Features   1. Light weight: Save cost 2. Easy installation 3. Safety: Fire-proof materials 4. Good sound insulation 5. Meet specials designs due to it is easy to form and cut     Application   Worshop, temporary office/buiding, gymansia, villa, mobile building, guard booth, wall & roof materials for steel building or structure.     Trade Term   1 Delivery time:  within 15-45 days after the receipt of L/C or deposit 2 MOQ: 500 square meters 3 Packaging details: standard seaworthy packing 4 Payment: T/T or L/C
