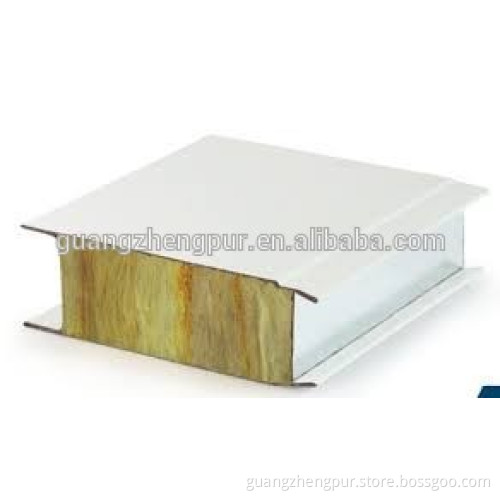

high quality rockwool insulation steel sandwich clean room panel

Heat Insulate Panel/Rock wool purification Sandwich Panel/Rock wool Composite purification Sandwich Panel / Rockwool sandwich panel Name: Rockwool purification Sandwich Panel Other Type: EPS/ Paper honeycomb/Aluminum  honeycomb Brand: Guangzheng. Materials: Cold-roll Steel EPS: Fireproof, hot & sound insulation, waterproof Working life: More than 20 years... Specification

Color steel foam sandwich panel / Rockwool sandwich panel
Type	color steel  foam sandwich panel (overlap joint)  All the screw and accessories are available
Dimensions	Total thickness	50/75/100mm
	Width	1150mm  (effective  width)
	Length	Less than 11.8m
External face	Material	PPGI
	Thickness	0.5mm
	Thickness of the zinc	120g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	20 micron
	Color	Grey white
	Pattern	Plain
Insulation	Optional foam Material	Rock wool
	Thickness	50/75/100mm
	Density	120kg/m3
	Thermal conductivity	0.02~0.03w/mk
Internal face	Material	PPGI
	Steel thickness	0.5mm
	Color	Grey white
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	7micron
	Pattern	Plain

    Advantage:   1.Weight: 20-120kg/m3, easy to install(donnot need crane), save more construction period and low the cost.
2. Excelent Sound Insulation, heat insulation, waterproof and damp resistant with it's good appearance.
3. Large load: Used as supporting structure and defense device for it's characteristic of high intension rigidity.
4. Panel length is according to the buyer's request, and the steel color is flexible based on the RAL standard, that makes your building more beautiful.
5. Eco-friendly   Features   1. Light weight: Save cost 2. Easy installation 3. Safety: Fire-proof materials 4. Good sound insulation 5. Meet specials designs due to it is easy to form and cut     Application   Worshop, temporary office/buiding, gymansia, villa, mobile building, guard booth, wall & roof materials for steel building or structure.     Trade Term   1 Delivery time:  within 15-45 days after the receipt of L/C or deposit 2 MOQ: 500 square meters 3 Packaging details: standard seaworthy packing 4 Payment: T/T or L/C
