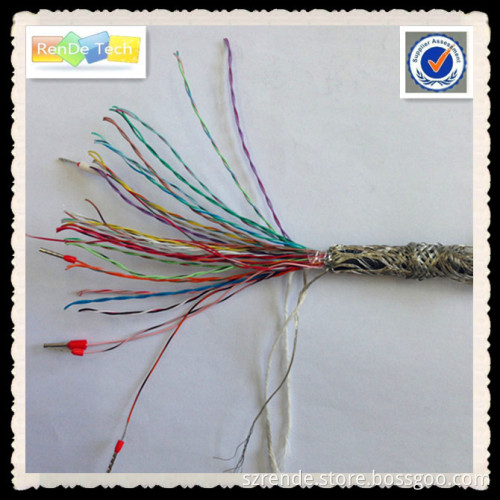

Top quality twisted pair double shielded communication cable

Specifications communication cable

1 Supply 4 pairs ,7pairs ,8 pair

2 we have stock

           communication cable  Product name :    Top quality twisted pair double shielded communication cable     1  multi-core flexible shielding pvc or pu jacket Cable   Application :drag chain wring,interconnection wire Rated temperature :60-80deg.c Rated Volage:30v 300v  600v ,1000v

Conductor		Insulation	shield	jacket
cores	size(awg)	Nom Dia.mm	Dia.of braid strand mm	(Nom Dia.mm)
3	28	0.8	0.1	3.8
4	28	0.8	0.1	4.03
5	28	0.8	0.1	4.26
6	28	0.8	0.1	4.5
10	28	0.8	0.12	5.3
15	28	0.8	0.12	6.26
20	28	0.8	0.12	7.40

    2  flexible power control cable     Application :drag chain wring   Rated temperature :90deg.c   Rated Volage:450/750v  300v

Conductor		Insulation	shield	jacket
cores	NOM AREA OF COND.              NO.MM	Nom Dia.mm	Dia.of braid strand mm	(Nom Dia.mm)
1	0.5                         7/16/0.08	1.95	16/3/0.1	3.2
1	1                            7/30/0.08	2.60	16/5/0.1	4.2
2	0.5                         7/16/0.08	1.95	16/4/0.15	5.7
2	1.5                         7/45/0.08	2.8	16/8/0.15	7.8
3	2.5                         7/72/0.08	3.7	NON	10.0
4	2.5                         7/72/0.08	3.7	NON	10.95
5	2.5                         7/72/0.08	3.7	NON	12.00

      3 PU jacket Machone Tool Cable     4 ul2464 Multi-core Computer Cable   5 Hook -up Wire and Multi-core Hook-up Wires   6 Flexible Single-core shielding pvc jacket Cable   7 Flexible Power Supply Shielding TPE jacket Cable   8 Long distance using shielded robot Cabke   9 Singal composite servo motor Cable   Application:Internal wiring or external interconnection of electronic equipment                      power supply cable of equipment                      For wiring of sensor                      High-speed moving part wiring od robot                      Long distance drag chain cable                      and so on                          Customize is Welcome!!!   Cable  Structure   1multi-core  non shielded  cable 2multi-core  shielded cable 3multi-core  double shielded cable 4multi-core  twisted pair double jacket shielded cable         Cable Material

Conductor			Insulation	shield	jacket(External Diameter mm)	Weight kg/km
cores	size(awg)	Section(mm2)
2c	28	0.08x2c		non	3.6	17.4
36c	28	0.08x36c		non	10.6	152.4
2c	26	0.14x2c		yes	4.7	26.8
38c	26	0.14x38c		yes	14	258.6
1p	24	0.25x2c		yes	4.7	26.4
16p	24	0.25x32c		yes	16.3	274.5
2c+2c	22 24	2x0.24+2x0.38		yes	6.1-7.1	74
1p+1p	18 16	2x0.96+2x1.53		yes	10.4-12.4	166

Ps : size can be 12awg to 36awg             jacket can be  2mm to 20mm         Apple company are our partner about 8 years. Our products are the toppest quality in the world.     products    1 teflon insulation +teflon jacket    OD=1.45MM  Temperature: 150°C     OD very thin  anti-acid,anti-oil,antisepsis.
      2 teflon insulation + Tpe jacket   OD=2.5MM  Temperature :inside 150°C   jacket 105°C    Flexible and no Halogen       3 teflon or pe or pvc insulation  + teflon or Tpe or pvc jacket                             Company Description                   Tester   UL approved styles      Packing    We can supply wire harness assembly     Sample charge: 1.The existing sample is free, only need 1day   2.According to your design, need 3-4days. need the sample charge.   3.When ensure the PO, We will return back your sample charge.      If you want konw more about our factory, please download the BV report in our home page
