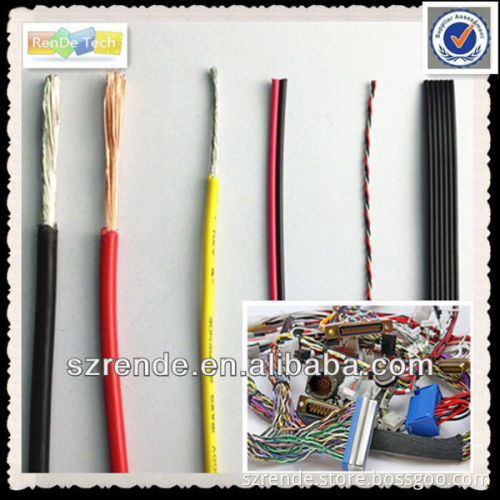

UL FEP teflon coated copper wire

Specifications Teflon Coated Copper Wire

1.UL approved, RoHS Complian

2 High temperature resistance,anti-acid,anti-oil,antisepsis.

             Teflon Coated Copper Wire   Product name :   electrical wire serise and wire harness serise    Hook-up & Lead Wire serise  Insulation  can be : pvc(85°C)    pe (105°C halogen free)   fep (150°C) Multicore cable    coaxial cable   mirco coaxial cable

AWG	Specification		No.	Stranded Distance(mm)	Stranded OD(mm)	Stranded OD Tolerence(mm)	Singles Diameter Tolerence(mm)	Diameter OD (mm)
AWG42	TPCA7/0.025		A	<1.0	0.075	±0.02	±0.002
AWG40	TPCA7/0.03		A	≤1.3	0.090	±0.02	±0.003
AWG38	TA7/0.04		A	1~2	0.120	±0.02	±0.003
AWG36	TA7/0.05		A	≤2.5	0.150	±0.02	0.046~0.053
	TPCA19/0.03		A	≤2.5	0.150		±0.003
AWG34	TA7/0.064		A	2~3	0.192	±0.02	±0.003
	TA12/0.05		A	2~3	0.200		0.046~0.053
	TA19/0.04		A	3~4	0.200		±0.003
			B	2~3
AWG32	TA7/0.08		A	4~6	0.240	±0.02	±0.003
			C	3.5~4
	TA12/0.06		A	3~4	0.240		±0.003
	TA19/0.05		A	3~4	0.250		0.046~0.053
			B	<2.5
AWG30	TA7/0.1		A	5~7	0.300	±0.02	0.096~0.103
			B	2.5--3.5
			WX	3~4
	TA12/0.08		A	3~5	0.320		±0.003
	TA19/0.06		A	3~4	0.300		±0.003
			B	2~3
AWG28	TA7/0.127		A	5~7	0.381	±0.02	0.123~0.130
			WX	4~5
	TA19/0.08		A	4~6	0.400		±0.003
	TA19/0.08		B	3~4	0.400
	TA49/0.05		A	4~6	0.400		0.046~0.053
AWG27	TA7/0.14		A	4~6	0.420	±0.02	0.136~0.143
	TA21/0.08		A	2~4	0.423		±0.003
AWG26	TA7/0.16		LW	≤6.5
	TA19/0.10		A	4~6	0.500		0.096~0.103
	TA49/0.06		A	5~7	0.485		±0.003
AWG24	TA7/0.20		A	7~9.5	0.609	±0.03	0.193~0.205
	TA7/0.20		B	11±2
	TA19/0.127		A	8~9	0.635		0.123~0.130
	TA41/0.08		A	5~8	0.592		±0.003
	TA11/0.16		A	10~14	0.613		±0.005
AWG23	TA21/0.127		A	9~11	0.672	±0.03	0.123~0.130
AWG22	TA7/0.254		A	≤14.5	0.762	±0.03	±0.008
	TA19/0.16		A	10~13	0.800		±0.005
AWG21	TA19/0.18		A	13~17	0.900	±0.03	±0.005
AWG20	TA7/0.32		A	17~21	0.960	±0.03	0.310~0.328
	TA41/0.127		A	14~18	0.939		0.123~0.130
AWG18	TA16/0.254		A	9~13	1.173	±0.03	0.250~0.262
	TA19/0.254		A	12~14	1.270		±0.008
	TA49/0.16		A	18~22	1.294		0.158~0.165
	TA65/0.127		A	18~22	1.183		0.123~0.130
AWG16	TA19/0.30		A	19~21	1.500	±0.05	±0.008

    Wire harness serise Pitch :0.3 0.4 0.5 0.8 1.0 2.0 ,other(mm) wire&cable : pvc wire, halogen-free wire,pp wire,teflon wire,other(UL) Connectors:Te&Tyco.Molex,Amphenol,FCI,HRS,I-PEX,KET,JST Other          UL approved styles            We have cooperated with Apple Company for 8 years!      Application  Widely applied in aviation; metallurgy and petroleum industry as well as applied in other products such as: electronic instrument & device, electrical appliance, lighting equipments, mechanical electrical, leads for transformer & electrical motor.           Tester
