high temperature cable

Specifications High Temperature Cable

1.high temperature resistance and fire retardant

2.wire diameter is very thin

3.UL approved and Rosh

          High Temperature Cable   Product name:    high temperature cable   1 pvc cable                          (- 20°C  to + 90°C) 2 Cross-linked cable           ( -55°C to +125°C) 3 Silicone cables                 ( -50°C to +180°C) 4 FEP cables                      ( -100°C to +205°C)   5 PTFE cables                     (-190°C to +260°C) 6 Glass fibre cables             (above +260°C) 7 Cross-linked single cores (-55°C to +125°C) 8 Silicone single cores         (-50°C to +180°C) 9 FEP single cores                (-100°C to +205°C) 10 PTFE single cores            (-190°C to +260°C) 11 Glass fibre single cores    (above +260°C)         products  1 teflon insulation +teflon jacket  OD=1.45MM  Temperature: 150°C     OD very thin  anti-acid,anti-oil,antisepsis.

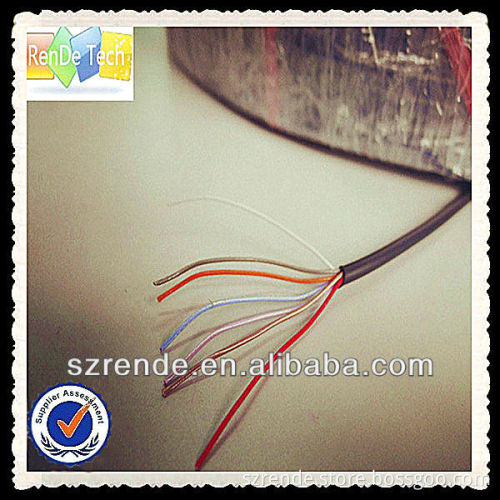

    2 teflon insulation + Tpe jacket OD=2.5MM  Temperature :inside 150°C   jacket 105°C    Flexible and no Halogen   3 teflon or pe or pvc insulation  + teflon or Tpe or pvc jacket  you  can  customize all kinds of multicore cables              Construction and Material

Item		Unit	Specification
Conductor	Size	AWG	24
	Material	/	Tinned copper or alloy copper
	Construction	pcs/mm	19/0.127±0.008
Insulation	Material	/	FEP or pe or pvc
	Min thickness	mm	0.11(Ref)
	Heat rate	%	≥80
	Diameter	mm	0.84±0.03
	Color	/	Red,Brown,Violet,Orange,Gray,White,Blue
shield	Construction	/	7C
	Lay Direction	/	S
Jacket	Material	/	TPE or teflon
	Min thickness	mm	0.44(Ref)
	Heat rate	%	≥80
	Diameter	mm	3.4±0.10
	Color	/	Black
	Surface	/	/
	Visual luminosity	/	/

    Advantage   1.Our company is a Teflon wire leader in domestic, and the supplier of world top 500, We have supplied wires for Apple company about 8 years. Our sales volume has definite proportion in global market.   2.Our wires are from 16AWG to 42AWG, wire diameter is between 1.8MM to 0.18MM. the Min tolerance is ±0.01,      When OD<0.5mm, the tolerance is ±0.02     When 0.5mm<OD<1mm, the tolerance is ±0.03     When OD>1MM, the tolerance is ±0.05   3.Our production technology has four steps with drawing, tinning, stranding and extruding.Blister Copper is processed to Teflon wire with the lowest cost.We are the largest Teflon wire manufacturer with 16 Teflon extruders in domestic. The daily capacity can reach 3200KM.   4.We own advanced production equipments. Every Teflon wire extruder has touch screen control, outer diameter tester, Embossing machine and spark machine that ensure the quality of products.       Cable Machine       Tester     Packing     UL approved       Sample charge   1.The existing sample is free, only need 1day    2.According to your design, need 3-4days.need the sample charge.   3.When ensure the PO, We will return back your sample charge.
