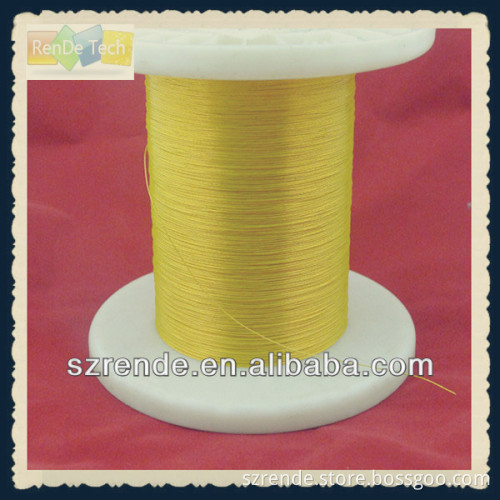

UL1354 micro coaxial cable

Specifications Micro Coaxial Cable

1.Shielding performance, Impedance stability,Long life, good formability.

2.UL approved, ROHS

             Micro Coaxial Cable   Product name :    UL10005 UL1354 micro coaxial cable    Drawing     AWG of micro coaxial cable  :  42AWG 40AWG 38AWG 36AWG 32AWG   Outer Diameter of micro coaxial cable :  ≥ 0.28mm   The current range : 0.30-1.20A   Impedance Value:according to your requirements     Characteristic

Test Item	Test Condition	Specified Value
Inner conductor resistance(at 20°C)	Ω/KM	Max.5000
Dielectric strength 1>	/	Withstand A.C.500V for 1min
Insulation resistance 1>	MΩ-KM	Min.1000
Characteristic impedance(at TDR)	Ω	42.5±4.5
Attention (at 10MHZ)	dB/m	Nom.0.5
Capacitance(at 1KHZ)	PF/M	Nom.130
Flammability	/	VW-1
Tensile strength(Ref.) 3>	N(kgf)	Nom.9.8(1.0)
Desquamation of jacket	/	20-150g/10mm
Allowable current (Ref.) 2>	A	0.4

  Specification     Application       Technical process       Cable maker     Test equipment        Tester   UL approved styles       Packing       Sample charge:   1.The existing sample is free, only need 1day   2.According to your design, need 2-3days. need the sample charge.   3.When ensure the PO, We will return back your sample charge.
