FEP insulation smaller signal loss micro coaxial cable

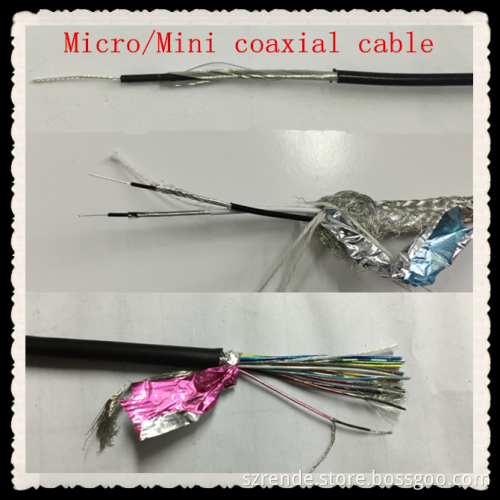

                 Coaxial Cable   Product name :       FEP insulation smaller signal loss micro coaxial cable we are coaxial cable manufacturer ,pls click blow to watch our factory.     micro / mini coaxial cable wire series   Constructure: Silver-placed or tinned ,Stranded silver-placed or tinned alloy copper conductor,30-46awg PFA insulation   Silver-placed or tinned copper ,spiral shielding PFA or PET jacket Rated temperature :80 deg.c Rated Voltage:30 V

Conductor		Insulation		Shield		jacket
AWG	Construction	Material	Dia mm	Material	Dia mm	Material	Dia.mm
46	7/0.016	PFA	0.115	Tinned  alloy copper	0.175	PFA	0.22
44	7/0.02	PFA	0.15	Tinned  alloy copper	0.21	PET	0.25
42	7/0.025	PFA	0.18	Tinned  alloy copper	0.24	PET	0.28
40	7/0.03	PFA	0.24	Tinned  alloy copper	0.30	PET	0.34
36	7/0.05	PFA	0.27	Tinned  alloy copper	0.33	PET	0.5
32	7/0.08	PFA	0.36	Tinned  alloy copper	0.42	PET	1.08

  OD can be 0.81 1.13mm   Fep insulation     Multicore micro coaxial cable          Aslo supply coaxial cable assembly               RF cable assembly for GSM System, GPS Navigation System, Wireless Communication System, Antennas, Car Radio, Test Equipment
RF cable assembly
APPLICATION
GSM System
GPS Navigation System
Wireless Communication System
Antennas
Car Radio
Test Equipment
Microwave Components
Data Transmission
Lan System
Satellite Transmission
Aviation Equipment COMPATIBLE CONNECTORS
SMA, SMB, SMC, MCX, MMCX, N, FME, TNC, BNC, MINI-UHF, UHF, F, ETC. COMPATIBLE CABLES
IMPEDANCE 50Ω / 75Ω / 93Ω

Detailed description

ISO 9001   ISO 14000    TS16949

SGS    ROHS   REACH    UL

1 Low unit price, quick delivery, fine quality, excellent flexibility and winding enduring.

2 Applying to all kinds of connectors by specification to customize products.

Customize is welcome!!            Tester                 Sample charge   1.The existing sample is free, only need 1day       2.According to your design, need 3-4days.need the sample charge.       3.When ensure the PO, the samply will be free.
