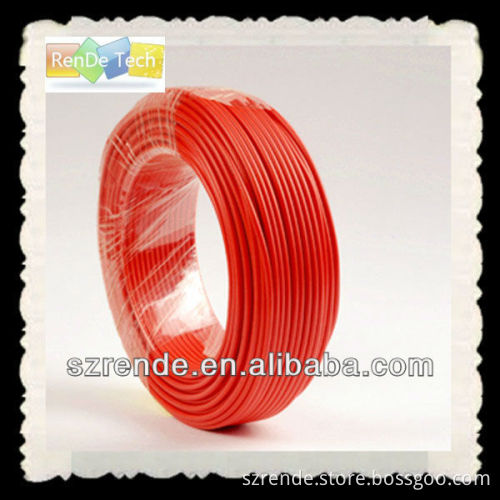

UL high temperature PVC electrical wire

Specifications PVC Electrical Wire

1 Flammability: VW-1, FT1, -F-.

2 Excellent thermal stability due to irradiatecross-linked

              PVC Electrical Wire   Product name :          UL high temperature PVC electrical wire

AWG	Specification		No.	Stranded Distance(mm)	Stranded OD(mm)	Stranded OD Tolerence(mm)	Singles Diameter Tolerence(mm)	Resistance (Max)Ω
AWG42	TPCA7/0.025		A	<1.0	0.075	±0.02	±0.002	7500
AWG40	TPCA7/0.03		A	≤1.3	0.090	±0.02	±0.003	5000
AWG38	TA7/0.04		A	1~2	0.120	±0.02	±0.003	3300
AWG36	TA7/0.05		A	≤2.5	0.150	±0.02	0.046~0.053	1500
	TPCA19/0.03		A	≤2.5	0.150		±0.003
AWG34	TA7/0.064		A	2~3	0.192	±0.02	±0.003	1040
	TA12/0.05		A	2~3	0.200		0.046~0.053
	TA19/0.04		A	3~4	0.200		±0.003
			B	2~3
AWG32	TA7/0.08		A	4~6	0.240	±0.02	±0.003	563
			C	3.5~4
	TA12/0.06		A	3~4	0.240		±0.003	563
	TA19/0.05		A	3~4	0.250		0.046~0.053	563
			B	<2.5
AWG30	TA7/0.1		A	5~7	0.300	±0.02	0.096~0.103	354
			B	2.5--3.5
			WX	3~4
	TA12/0.08		A	3~5	0.320		±0.003
	TA19/0.06		A	3~4	0.300		±0.003
			B	2~3
AWG28	TA7/0.127		A	5~7	0.381	±0.02	0.123~0.130	223
			WX	4~5
	TA19/0.08		A	4~6	0.400		±0.003
	TA19/0.08		B	3~4	0.400
	TA49/0.05		A	4~6	0.400		0.046~0.053
AWG27	TA7/0.14		A	4~6	0.420	±0.02	0.136~0.143
	TA21/0.08		A	2~4	0.423		±0.003
AWG26	TA7/0.16		LW	≤6.5				149
	TA19/0.10		A	4~6	0.500		0.096~0.103
	TA49/0.06		A	5~7	0.485		±0.003
AWG24	TA7/0.20		A	7~9.5	0.609	±0.03	0.193~0.205	89.3
	TA7/0.20		B	11±2
	TA19/0.127		A	8~9	0.635		0.123~0.130
	TA41/0.08		A	5~8	0.592		±0.003
	TA11/0.16		A	10~14	0.613		±0.005
AWG23	TA21/0.127		A	9~11	0.672	±0.03	0.123~0.130	75
AWG22	TA7/0.254		A	≤14.5	0.762	±0.03	±0.008	55
	TA19/0.16		A	10~13	0.800		±0.005
AWG21	TA19/0.18		A	13~17	0.900	±0.03	±0.005	45
AWG20	TA7/0.32		A	17~21	0.960	±0.03	0.310~0.328	36.39
	TA41/0.127		A	14~18	0.939		0.123~0.130	38.85
AWG18	TA16/0.254		A	9~13	1.173	±0.03	0.250~0.262	24.51
	TA19/0.254		A	12~14	1.270		±0.008
	TA49/0.16		A	18~22	1.294		0.158~0.165
	TA65/0.127		A	18~22	1.183		0.123~0.130
AWG16	TA19/0.30		A	19~21	1.500	±0.05	±0.008	13.7

    Advantage 1. Our company is a PVC wire leader in domestic , and the supplier of world top 500, We have supplied wires for Apple company about 8 years. Our sales volume has definite proportion in global market.   2.Our wires are from 16AWG to 42AWG, wire diameter is between 1.8MM to 0.18MM. the Min tolerance is ±0.01,      When OD<0.5mm, the tolerance is ±0.02     When 0.5mm<OD<1mm, the tolerance is ±0.03     When OD>1MM, the tolerance is ±0.05   3.Our production technology has four steps with drawing, tinning, stranding and extruding.Blister Copper is processed to PVC wire with the lowest cost.We are the largest PVC wire manufacturer with 6 PVC extruders in domestic. The daily capacity can reach 1600KM.   4.We own advanced production equipments. Every PVC wire extruder has touch screen control, outer diameter tester, Embossing machine and spark machine that ensure the quality of products.     Application     Technical process       Test equipment         Tester     UL approved styles     Packing       Sample charge:   1.The existing sample is free, only need 1day.   2.According to your design, need 3-4days.need the sample charge.   3.When ensure the PO, We will cut your sample charge.
