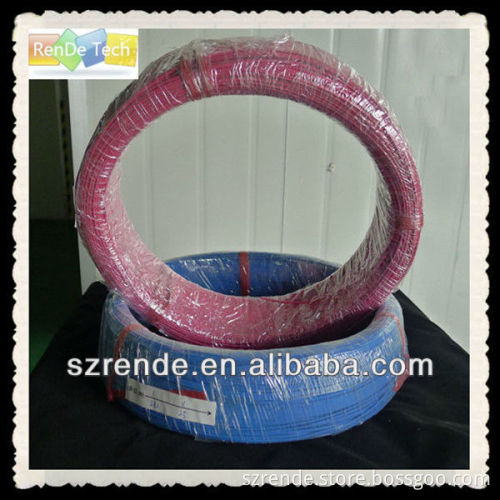

UL3347 XLPE wire

Specifications UL3347

1 flammability: VW-1, FT1, -F-.

2 excellent thermal stability .

3 UL CUL approved

             UL3347Product name :      UL3347 XLPE wire    Structure             Insulation :FEP    ETFE     PFA                     Regular products        From 16awg to 42awg        OD=0.2mm to 3mm    Conductor : tinned copper           tinned  Copper Alloy       Silver-plated copper ALLOY

AWG	Specification		No.	Stranded Distance(mm)	Stranded OD(mm)	Stranded OD Tolerence(mm)	Singles Diameter Tolerence(mm)	Resistance (Max)Ω
AWG42	TPCA7/0.025		A	<1.0	0.075	±0.02	±0.002	7500
AWG40	TPCA7/0.03		A	≤1.3	0.090	±0.02	±0.003	5000
AWG38	TA7/0.04		A	1~2	0.120	±0.02	±0.003	3300
AWG36	TA7/0.05		A	≤2.5	0.150	±0.02	0.046~0.053	1500
	TPCA19/0.03		A	≤2.5	0.150		±0.003
AWG34	TA7/0.064		A	2~3	0.192	±0.02	±0.003	1040
	TA12/0.05		A	2~3	0.200		0.046~0.053
	TA19/0.04		A	3~4	0.200		±0.003
			B	2~3
AWG32	TA7/0.08		A	4~6	0.240	±0.02	±0.003	563
			C	3.5~4
	TA12/0.06		A	3~4	0.240		±0.003	563
	TA19/0.05		A	3~4	0.250		0.046~0.053	563
			B	<2.5
AWG30	TA7/0.1		A	5~7	0.300	±0.02	0.096~0.103	354
			B	2.5--3.5
			WX	3~4
	TA12/0.08		A	3~5	0.320		±0.003
	TA19/0.06		A	3~4	0.300		±0.003
			B	2~3
AWG28	TA7/0.127		A	5~7	0.381	±0.02	0.123~0.130	223
			WX	4~5
	TA19/0.08		A	4~6	0.400		±0.003
	TA19/0.08		B	3~4	0.400
	TA49/0.05		A	4~6	0.400		0.046~0.053
AWG27	TA7/0.14		A	4~6	0.420	±0.02	0.136~0.143
	TA21/0.08		A	2~4	0.423		±0.003
AWG26	TA7/0.16		LW	≤6.5				149
	TA19/0.10		A	4~6	0.500		0.096~0.103
	TA49/0.06		A	5~7	0.485		±0.003
AWG24	TA7/0.20		A	7~9.5	0.609	±0.03	0.193~0.205	89.3
	TA7/0.20		B	11±2
	TA19/0.127		A	8~9	0.635		0.123~0.130
	TA41/0.08		A	5~8	0.592		±0.003
	TA11/0.16		A	10~14	0.613		±0.005
AWG23	TA21/0.127		A	9~11	0.672	±0.03	0.123~0.130	75
AWG22	TA7/0.254		A	≤14.5	0.762	±0.03	±0.008	55
	TA19/0.16		A	10~13	0.800		±0.005
AWG21	TA19/0.18		A	13~17	0.900	±0.03	±0.005	45
AWG20	TA7/0.32		A	17~21	0.960	±0.03	0.310~0.328	36.39
	TA41/0.127		A	14~18	0.939		0.123~0.130	38.85
AWG18	TA16/0.254		A	9~13	1.173	±0.03	0.250~0.262	24.51
	TA19/0.254		A	12~14	1.270		±0.008
	TA49/0.16		A	18~22	1.294		0.158~0.165
	TA65/0.127		A	18~22	1.183		0.123~0.130
AWG16	TA19/0.30		A	19~21	1.500	±0.05	±0.008	13.7

          Package           Multicore cable products                 Advantage   1.Our company is a Teflon wire leader in domestic, and the supplier of world top 500, We have supplied wires for Apple   company about 8 years. Our sales volume has definite proportion in global market.       2.Our wires are from 16AWG to 42AWG, wire diameter is between 1.8MM to 0.18MM. the Min tolerance is ±0.01,          When OD<0.5mm, the tolerance is ±0.02       When 0.5mm<OD<1mm, the tolerance is ±0.03       When OD>1MM, the tolerance is ±0.05       3.Our production technology has four steps with drawing, tinning, stranding and extruding.Blister Copper is processed to Teflon wire with the lowest cost.We are the largest Teflon wire manufacturer with 16 Teflon extruders in domestic. The daily capacity can reach 3200KM.               Technical process                     Tester         UL approved styles                      Sample charge:   1.The existing sample is free, only need 1day.   2.According to your design, need 3-4days.need the sample charge.   3.When ensure the PO, We will cut your sample charge.   If you want to know more about our factory, please download the BV report in our home page.
