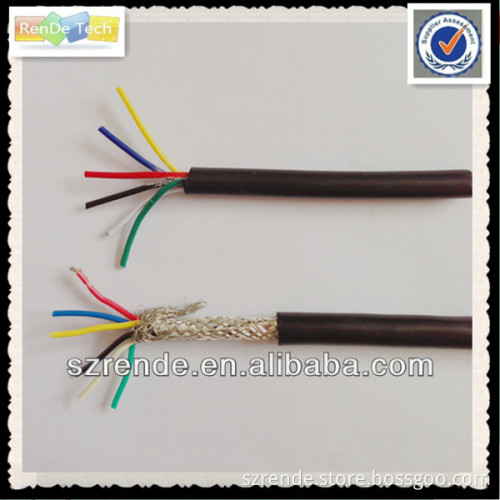

multicore teflon insulation and teflon jacket cable

Specifications Teflon Jacket Cable

1.inside wire is teflon wire

2 high temperature can be 150 deg c to 200 deg

3anti-acid,anti-oil,VW-1

               teflon jacket cable  Product name :    multicore teflon insulation and teflon jacket cable      Apple company are our partner about 8 years. Our products are the toppest quality in the world.     1 teflon insulation +teflon jacket    OD=1.45MM  Temperature: 150°C     OD very thin  anti-acid,anti-oil,antisepsis.
      2 teflon insulation + Tpe  or pvc  jacket   Temperature :inside 150°C   jacket 85°C-105°C    Flexible and no Halogen         3 multicore shielded teflon cable   Customize is Welcome!!!              Construction and Material

Conductor			Insulation	shield	jacket(External Diameter mm)	Weight kg/km
cores	size(awg)	Section(mm2)
2c	28	0.08x2c		non	3.6	17.4
36c	28	0.08x36c		non	10.6	152.4
2c	26	0.14x2c		yes	4.7	26.8
38c	26	0.14x38c		yes	14	258.6
1p	24	0.25x2c		yes	4.7	26.4
16p	24	0.25x32c		yes	16.3	274.5
2c+2c	22 24	2x0.24+2x0.38		yes	6.1-7.1	74
1p+1p	18 16	2x0.96+2x1.53		yes	10.4-12.4	166

  Ps : size can be 12awg to 36awg               jacket can be  2mm to 20mm           Company Description        Tester         UL approved styles          Packing      We can supply wire harness assembly             Sample charge:   1.The existing sample is free, only need 1day.       2.According to your design, need 3-4days. need the sample charge.       3.When ensure the PO, We will return back your sample charge.       If you want to know more about our factory, please download the BV report in our home page.
