Xiongda 36V 250W & 48V 300W Electric Bicycle Motor Conversion Kit
  • Xiongda 36V 250W & 48V 300W Electric Bicycle Motor Conversion Kit
  • Xiongda 36V 250W & 48V 300W Electric Bicycle Motor Conversion Kit
  • Xiongda 36V 250W & 48V 300W Electric Bicycle Motor Conversion Kit
  • Xiongda 36V 250W & 48V 300W Electric Bicycle Motor Conversion Kit
  • Xiongda 36V 250W & 48V 300W Electric Bicycle Motor Conversion Kit
Xiongda 36V 250W & 48V 300W Electric Bicycle Motor Conversion Kit
Xiongda 36V 250W & 48V 300W Electric Bicycle Motor Conversion Kit
Xiongda 36V 250W & 48V 300W Electric Bicycle Motor Conversion Kit
Xiongda 36V 250W & 48V 300W Electric Bicycle Motor Conversion Kit
Xiongda 36V 250W & 48V 300W Electric Bicycle Motor Conversion Kit

Xiongda 36V 250W & 48V 300W Electric Bicycle Motor Conversion Kit

  • $60.00
    2-99 set
  • $55.00
    100-999 set
  • $50.00
    ≥1000 set
Min. Order:
1 set
Min. Order:
1 set
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
Product Description

36V 250W 48V 350W electric bicycle motor conversion kit/electric bike wheel kit

Product Features:

  • Brushless and geared motor
  • Soft start performance
  • High Efficiency
  • Low noise
  • Energy Saving
  • Long riding distance
  • Logo can be customized
  • ODM order are welcome

Product Parameters




  YTW-01 YTW-02A YTW-03 YTW-04
Drive Front/Rear Front/Rear Front/Rear Front/Rear
Rated Voltage(V) 24/36/48 24/36/48 24/36/48 24/36/48
Rated Power(W) 180~350 180~300 180~350 180~300
Wheel Size(Inch) 16~28 14~28 14~28 18~28
Rated Speed(km/H) 25 25 25 25
Reduction Ratio 1:4.3 1:4.3 1:4.3 1:6.8
Installation Width(mm) 100~160 100~160 100~160 100~160
Cable Location Shaft center,Left Shaft center,Right Shaft side, Left Shaft side, Left
Brake/Type V/Disc/Drum brake V/Disc/Drum brake V/Disc/Drum brake V/Disc/Drum brake
Freewheel Thread-on Thread-on/Cassette Thread-on Thread-on
Efficiency (%) 82 82 82 82
Net Weight(kg) 3 2.8 3 2.2
Spoke Hole 36 36 36 36
Spoke Specification 12/13g 12/13g 12/13g 12/13g
Surface Silver/Black painted Silver/Black painted Silver/Black painted Silver/Black painted
Hall Sensor Yes Yes Yes Yes
Speed sensor inside Optional Optional Optional Optional
Salt Fog Test(H) 24/96 24/96 24/96 24/96
Noise(db) <60 <60 <60 <60
Waterproof Grade IP54 IP54 IP54 IP54

Product Pictures

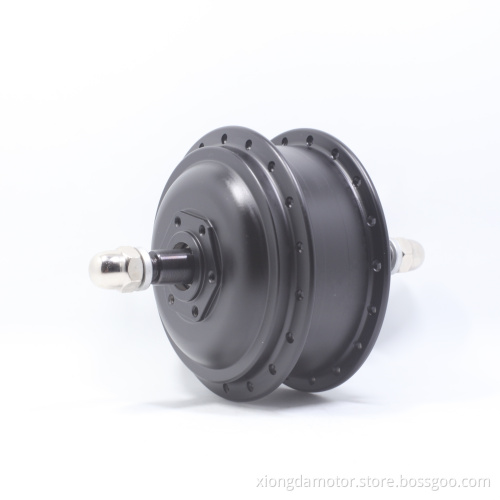

Below Four motors for your choice:
 Xiongda 36V 250W 48V 300W electric bicycle motor conversion kit electric bike wheel motor engine kit


Both LED and LCD display are available.
Thumb Throttle, Twister throttle, Half throttle are all available.

Xiongda 36V 250W 48V 300W electric bicycle motor conversion kit electric bike wheel motor engine kit

 One Electric bike kit sample. Both with and without tire are OK.
Xiongda 36V 250W 48V 300W electric bicycle motor conversion kit electric bike wheel motor engine kit


Product Application

Xiongda 36V 250W 48V 300W electric bicycle motor conversion kit electric bike wheel motor engine kit Product Application

Xiongda 36V 250W 48V 300W electric bicycle motor conversion kit electric bike wheel motor engine kit
