Xiongdaa Electric Bicycle Conversion Kit: Controller, Display, Throttle, PAS, and Brake Lever
-
$121.192-199 set
-
$116.14200-999 set
-
$111.09≥1000 set
- Min. Order:
- 1 set
- Min. Order:
- 1 set
Your message must be between 20 to 2000 characters

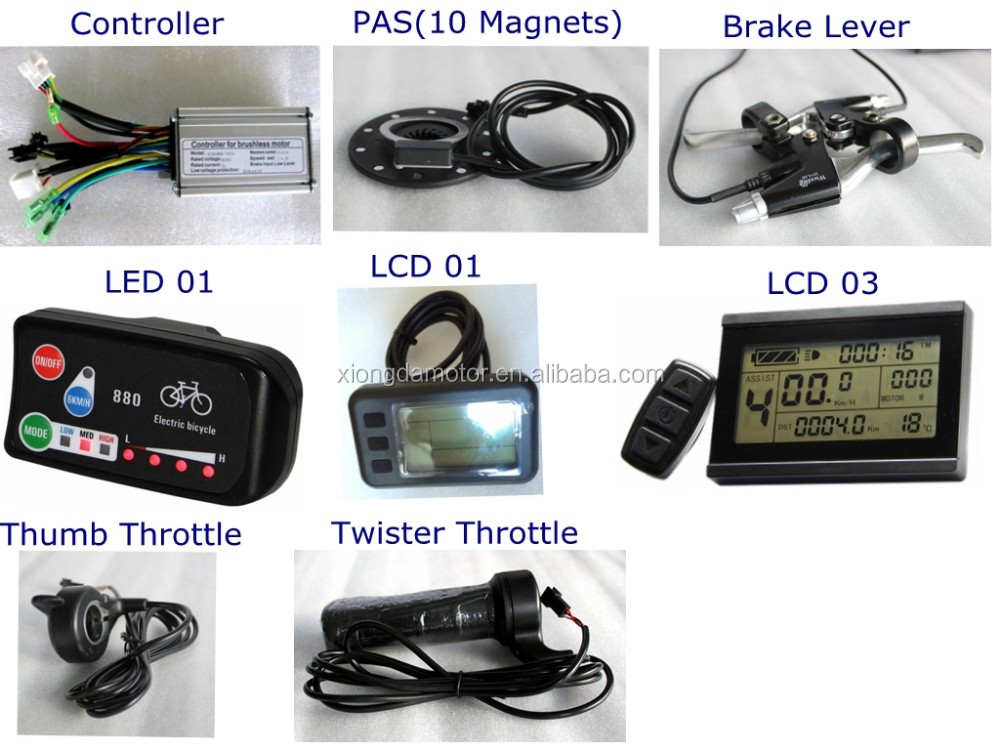

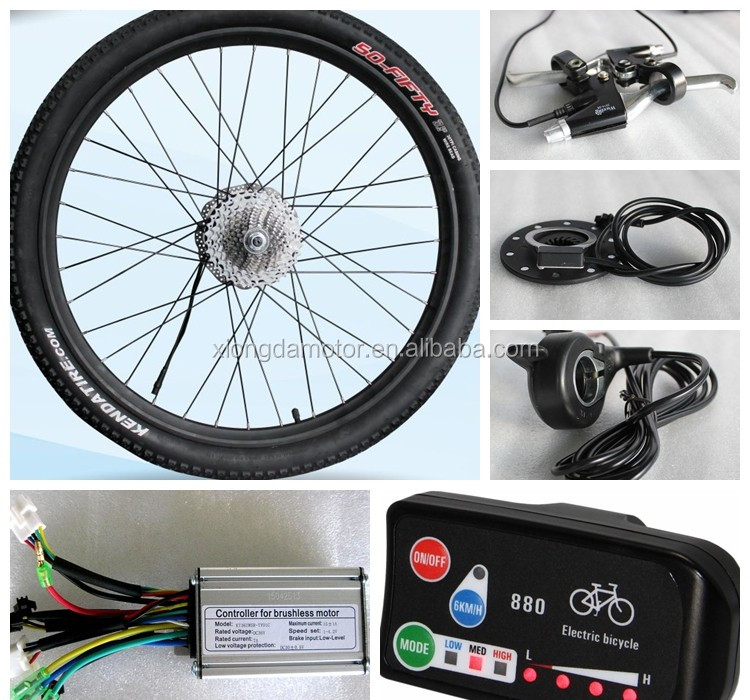

Contact NowElectric bicycle conversion kit/controller/display/throttle/PAS/brake lever
Product Features for electric bicycle conversion kit:
- Brushless and geared motor
- Soft start performance
- High Efficiency
- Low noise
- Energy Saving
- Long riding distance
- Logo can be customized
- ODM order are welcome
Product Parameters

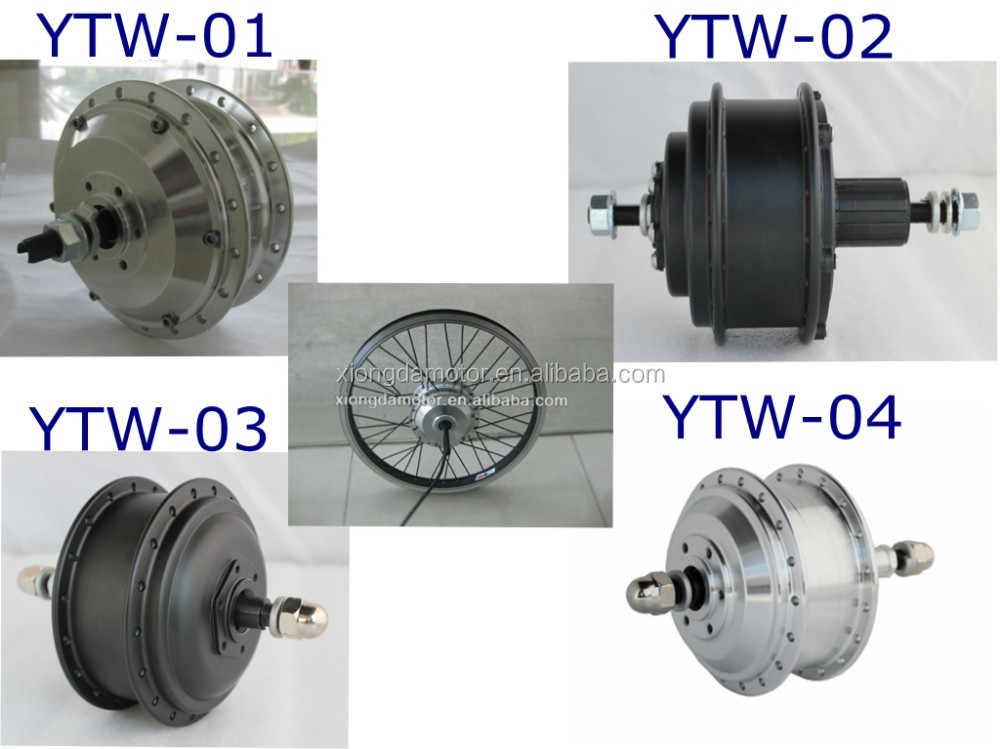

| YTW-01 | YTW-02A | YTW-03 | YTW-04 | |
| Drive | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Rated Voltage(V) | 24/36/48 | 24/36/48 | 24/36/48 | 24/36/48 |
| Rated Power(W) | 180~350 | 180~300 | 180~350 | 180~300 |
| Wheel Size(Inch) | 16~28 | 14~28 | 14~28 | 18~28 |
| Rated Speed(km/H) | 25 | 25 | 25 | 25 |
| Reduction Ratio | 1:4.3 | 1:4.3 | 1:4.3 | 1:6.8 |
| Installation Width(mm) | 100~160 | 100~160 | 100~160 | 100~160 |
| Cable Location | Shaft center,Left | Shaft center,Right | Shaft side, Left | Shaft side, Left |
| Brake/Type | V/Disc/Drum brake | V/Disc/Drum brake | V/Disc/Drum brake | V/Disc/Drum brake |
| Freewheel | Thread-on | Thread-on/Cassette | Thread-on | Thread-on |
| Efficiency (%) | 82 | 82 | 82 | 82 |
| Net Weight(kg) | 3 | 2.8 | 3 | 2.2 |
| Spoke Hole | 36 | 36 | 36 | 36 |
| Spoke Specification | 12/13g | 12/13g | 12/13g | 12/13g |
| Surface | Silver/Black painted | Silver/Black painted | Silver/Black painted | Silver/Black painted |
| Hall Sensor | Yes | Yes | Yes | Yes |
| Speed sensor inside | Optional | Optional | Optional | Optional |
| Salt Fog Test(H) | 24/96 | 24/96 | 24/96 | 24/96 |
| Noise(db) | <60 | <60 | <60 | <60 |
| Waterproof Grade | IP54 | IP54 | IP54 | IP54 |
Product Application
