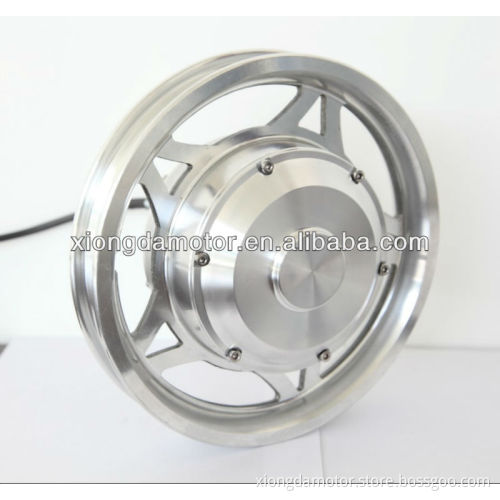

8'' Single Axle Electric Wheelchair Wheel Motor

Specifications Easy to control

Low noise,light weight

High efficiency

CE,CCC certificated

  Electric wheelchair motor
1. High Effieciency,low noise, high speed
2. Brushless motor and stable performance 3. Long riding distance 4. Electromagnetic Brake Control System   Rated Voltage (V) 24v
Cable Location: left and right
Revolution: 190±5RPM
Length of the shaft (out side part) 60mm
Wheel Size  12''
Speed (km/h ) 12km/h
parameters of this product:

Rated Voltage (V)	24V	Cable Location	left AND right
Rated Power (W)	250W	Length of the shaft	60mm
Wheel Size	12''	Hall Sensor	Optional
Rated Speed (km/h)	<12km/h	Speed sense inside	Optional
N.m	12.56 N.m	Surface	Silver/Black painted
Reduction Ratio	1:4.4	Brake Type	Electromagnetic brake
Weight (Kg)	4kg	Design	DC brushless geared
Revolution(RPM)	190rpm	Noise (db)	< 60
Drive	Rear	Waterproof Grade	IP54
