Unilateral shaft motor for wheelchair /Electromagnetic Brake Single Sided Axle DC motor / Joystick and Controller For Wheelchair

Specifications Continuous current is between 0.5A to 0.7A

Special: 4 speed changeble

Specifications Rated Voltage (V) :24v
360 Revolution Function
Power:200W or Optional
protection for the battery and the motor


Parameters of this Product:
Rated Voltage (V)	24V	Cable Location	Left and right
Rated Power   (w)	250W	Spoke Specification	12g/13g
Wheel Size	12’’	Hall Sensor	Optional
Rated Speed (km/h)	<12km/h	Speed sense inside	Optional
N.m	12.56N.m	Surface	silver/black painted
Reduction Ratio	1:4.4	Brake Type	Electromagnetic brake
Weight       (kg)	4KG	Salt fog test(h)	24/96
Open Size   (mm)	100	Design	DC brushless geared
Drive	Rear	Noise (db)	≤60
Length of the shaft	60mm	Waterproof Grade	IP54

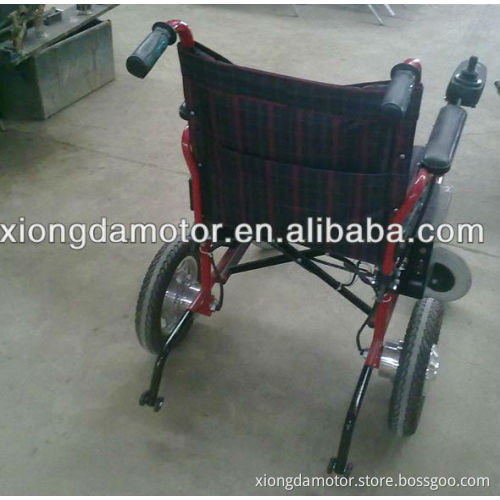

    Figure 1 unilateral wheelchair motor   Figure 2: unilateral wheelchair motor disassembly graph   Figure 3: controller and remote control   Figure 4 : controller   Figure 5 : remote control .  It  is good for left-handed and right-handed person .   Figure 6 : electrically powered wheelchair parts
