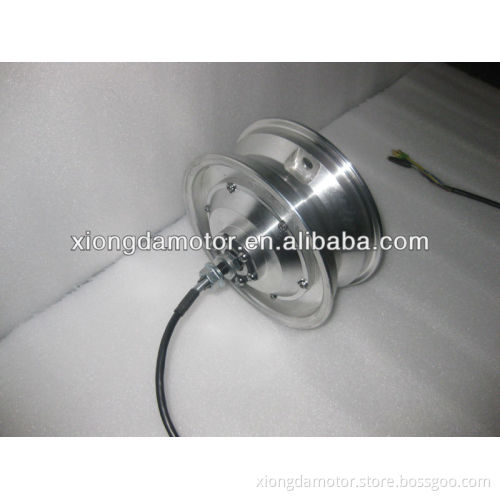

10'' Electric Scooter Motor

Specifications 1. 24V,36V,48V 250-350W

2. High torque,light weight

3. Powerful to climb

4. CE,CCC certificate

 Feature of the motor:   Integrated,support drum brake or disk brake, high efficiency, high torque,wide platform.

Rated Voltage (V)	DC24/36/48	Cable Location	left
Rated Power (W)	180-350	Torque	30N.m
Wheel Size	10''	Hall Sensor	Optional
Rated Speed (km/h)	Around 35	Inside	Clutch and planetary gear
Rated Efficiency (%)	>=82	Surface	Silver/Black painted
Reduction Ratio	1:4.4	Brake Type	Optional (disk brake)
Features	Brushless geared	Salt fog test (h)	24/96
Open Size (mm)	Optional	Noise (db)	< 60
Drive	Optional	Waterproof Grade	IP54
