YTW-03 Electric bike kit, brushless and geared bldc electric bicycle wheel hub motor

Product Description YTW-03 Electric bike kit, brushless and geared bldc electric bicycle wheel hub motor
This motor is the basic model, can do front-drive motor and rear-drive motor Can be assembled with disk brake, V brake and drum brake Suitable for touring bikes, city bikes, commuter bikes Product features: Brushless and geared motor
Soft start performance
High Efficiency: >=82%
Low noise : <60db
Energy Saving
Long riding distance
Logo can be customized
ODM order are welcome

Rated Voltage(V)	24/36/48	Cable Location	Left
Rated Power (W)	201~300	Spoke Specification	12g/13g
Wheel Size (inch)	14--28	Hall Sensor	Yes
Rated Speed (km/h)	25	Integrated Speed Sensor	Optional
Rated Efficiency (%)	>=82	Surface	Silver/Black painted
Reduction Ratio	1:4.3	Brake Type	Disc-brake/V brake/Drum brake
Weight (Kg)	2.5	Salt fog test (h)	24/96
Open Size (mm)	100~160mm	Noise (db)	< 60
Drive	Front/Rear	Waterproof Grade	IP54

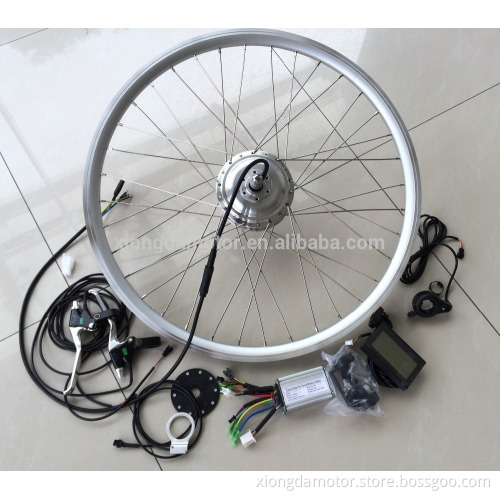

Detailed Images DIY Electric Bicycle conversion kit: Alluminium Alloy Rim with motor  x 1 set  (16''  20'' 24'' 26'' 700C 28'' rim) Intelligent controller x 1 pc  (square wave) LCD or LED display x 1 pc  PAS(pedal assist sensor) x 1 pc  (10 magnets) Throttle x 1 pc  (thumb throttle pr twister throttle or half throttle) Brake lever x 1 pr
LCD 03 Display LCD 01 Display LED 880 Display Thumb throttle Twister throttle   Square wave controller PAS (10 magnets) Brake Lever Packing & Delivery Certifications Our Company Related Products
